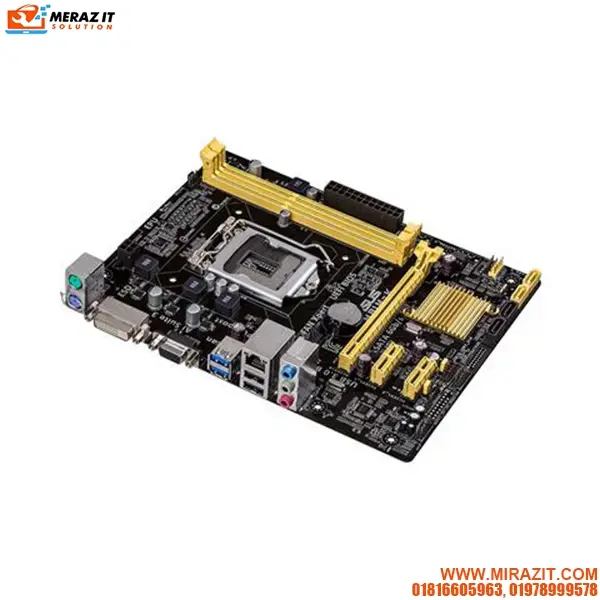

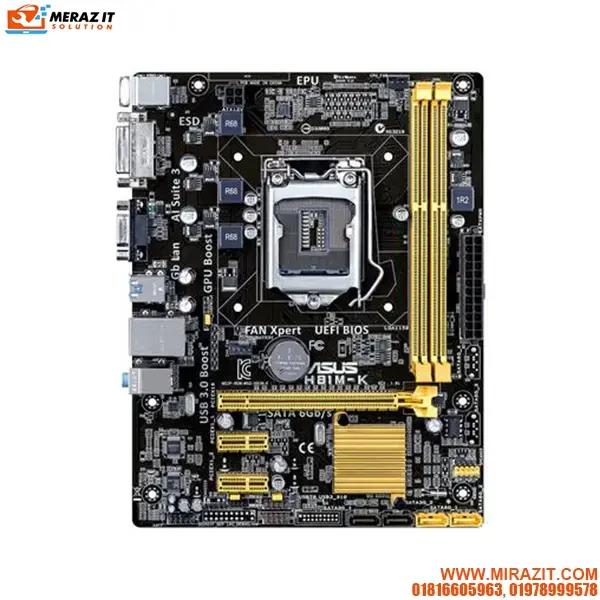

Asus H81M-K ATX Motherboard

৳ 9,100

Chipset: Intel H81 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Socket: LGA1150
Sata slots: 2 x SATA 6Gb/s port(s), yellow,
2 x SATA 3Gb/s port(s), dark brown,
USB: 2 x USB 3.1 Gen 1 ports, 6 x USB 2.0 ports
Memory: 2 x DIMM, Max. 16GB, DDR3

অর্ডার করার পূর্বে অবশ্যই প্রোডাক্ট এর স্টক জেনে নিন।

01816-605963 01816-605963
SKU: albr2376 Category:

Description

Model H81M-K
CPU Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset Intel H81
Graphics Integrated Graphics Processor
Multi-VGA output support : DVI/RGB ports
– Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
– Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider
Expansion Slots 1 x PCIe x16
2 x PCIe 2.0 x1
PCI PCIe 2.0 x1
Internal I/O Ports 1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)
Memory Slots 2 x DIMM, Max, DDR3
Memory Type DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
USB Intel® H81 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
Intel® H81 chipset :
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
Audio Realtek ALC887/897 8-Channel High Definition Audio CODEC *2
– Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback
BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor uATX Form Factor
8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )
Warranty 3 Years Replacement Warranty (*terms and conditions apply)
