Description

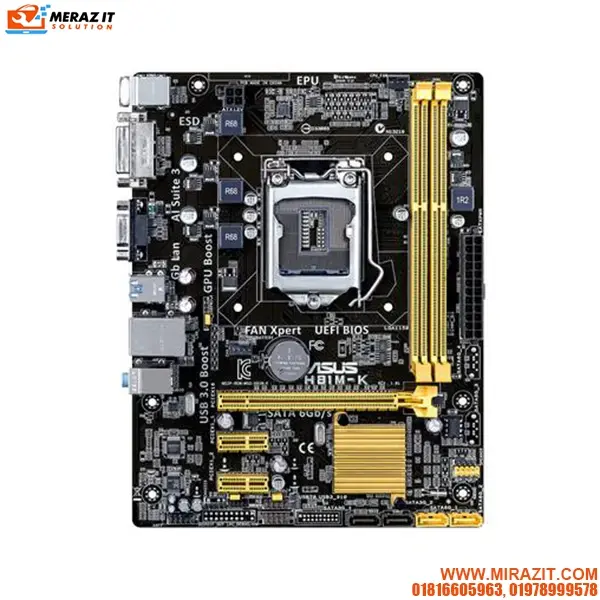

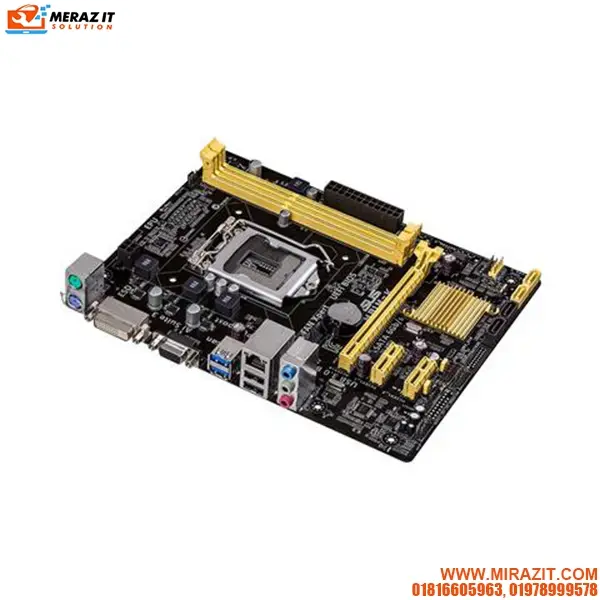

| Model | H81M-K |
| CPU | Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel® 22 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list |
| Chipset | Intel H81 |
| Graphics | Integrated Graphics Processor Multi-VGA output support : DVI/RGB ports – Supports DVI with max. resolution 1920 x 1200 @ 60 Hz – Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider |
| Expansion Slots | 1 x PCIe x16 2 x PCIe 2.0 x1 |
| PCI | PCIe 2.0 x1 |
| Internal I/O Ports | 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x Clear CMOS jumper(s) |
| Memory Slots | 2 x DIMM, Max, DDR3 |
| Memory Type | DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture |
| USB | Intel® H81 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue) Intel® H81 chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) |
| Audio | Realtek ALC887/897 8-Channel High Definition Audio CODEC *2 – Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback |
| BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Form Factor | uATX Form Factor 8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm ) |
| Warranty | 3 Years Replacement Warranty (*terms and conditions apply) |
