Description
| CPU | Intel® Celeron® N4505 Processor 2.0GHz (4M Cache, up to 2.9GHz) |
| Chipset | “Integrated TPM module on board (on selected model)” |
| Graphic | Intel® UHD Graphics for 11th Gen Intel® Processors |
| Memory | 2 x DDR4 SO-DIMM, Max. 16GB x 1 or 8GB x 2 |
| Storage | 1 x M.2 2280 PCIe Gen3x2 slot, 1 x SATA 6Gb/s connector for 2.5” HDD, 1 x optional eMMC onboard |
| WLAN | Wi-Fi 5, Bluetooth 5.0, 2*2 (Barebone SKU) |
| Lan | 2.5G LAN, Realtek® RTL8125B-CG |

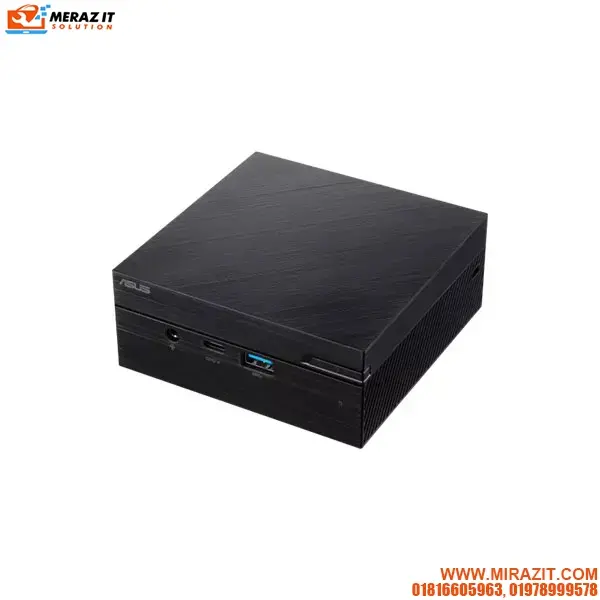

| Side I/O Ports | “1 x USB 3.2 Gen2 Type-C(w/ quick charge), 1 x USB3.2 Gen1 Type-A, 1x 4-in-1 Card Reader, 1 x Consumer Infrared Sensor, 2 x Microphone Array, 1x Audio Jack(optional), 1 x K-Lock(side) 1 x USB 3.2 Gen2 Type-C(w/ quick charge), 1 x USB 3.2 Gen1 Type-A, 1 x Audio Jack(optional), 1 x K-Lock(side)” |

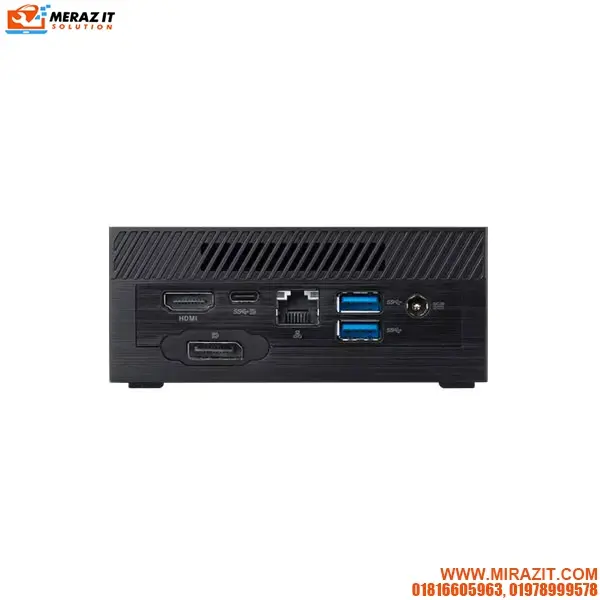

| Front I/O Ports | 1 x USB 3.2 Gen1 Type-C (w/ DP output, PD input), 1 x HDMI, 2 x USB 3.2 Gen1, 1 x Configurable Port (option: VGA/COM/DP/LAN), 1 x 2.5G(RJ45) LAN, 1 x DC-in |
| Dimensions | 115 x 115 x 49 mm |
| Configurable I/O | 1 x VGA Port |
| Power Supply | 19Vdc, 3.42A, 65W Power Adapter |
| Keyboard | USB Keyboard |
| Weight | 700g (include 2.5″ HDD) |
| Color | Black |
| Mouse | USB Mouse |
| Accessories | Keyboard/Mouse PACKING BASIC PACKING VESA MOUNT(Lockable) |
