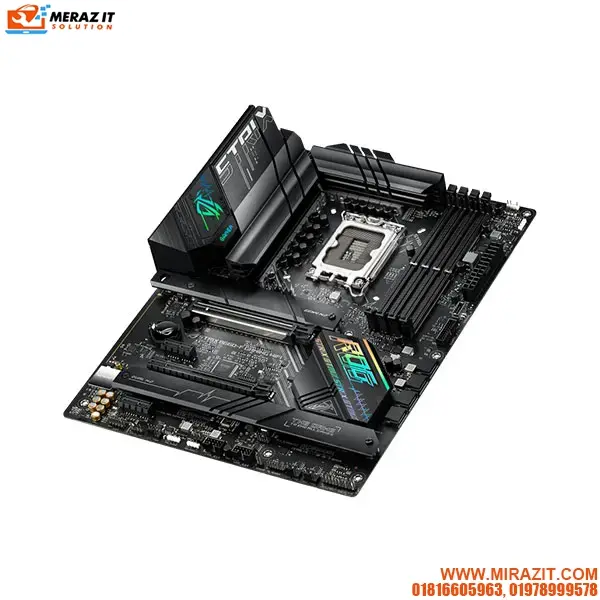

Asus ROG STRIX B660-F ATX GAMING WIFI Motherboard

৳ 29,500

Chipset: Intel® B660 Chipset for 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
Socket : Intel® LGA1700
m.2 slots: supports 3 x M.2 slots with 2 x PCIE 4.0 and 1 x PCIE 3.0
USB: 7x Front ports 9x Rear ports
Memory: 4 x DIMM, Max. 128GB, DDR5

অর্ডার করার পূর্বে অবশ্যই প্রোডাক্ট এর স্টক জেনে নিন।

01816-605963 01816-605963
SKU: albr8148 Category:

Description

CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
Chipset Intel® B660 Chipset
Graphics 1 x DisplayPort 1 x HDMI® port
Expansion Slots Intel® 12th Gen Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) Intel® B660 Chipset** 1 x PCIe 3.0 x16 slot (supports x4 mode)*** 2 x PCIe 3.0 x1 slots
Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x S/PDIF Out header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header
Memory Slots 4
Memory Type DDR5
USB Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 ports (1 x Type-A) 5 x USB 3.2 Gen 1 ports (4 x Type-A, 1 x USB Type-C®) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback
Maximum Memory 128GN
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX
Warranty 3 Years Replacement
