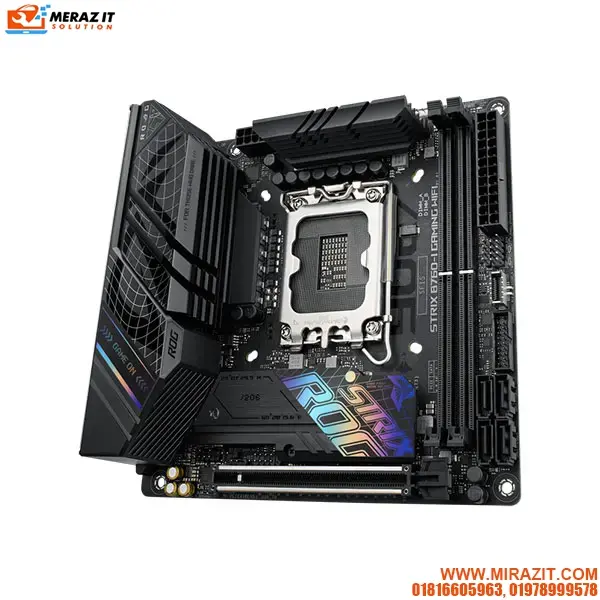

ASUS ROG STRIX B760-I GAMING WIFI Intel 13th Gen Mini-ITX Motherboard

৳ 0

Chipset: Intel B760 Chipset for 13th Gen, 12th Gen, Pentium, Celeron Processors
Socket: Intel Socket LGA1700
m.2 slots: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
USB: 5x Front ports 8x Rear ports
Memory: 2 x DIMM, Max. 96GB, DDR5

Out of stock

অর্ডার করার পূর্বে অবশ্যই প্রোডাক্ট এর স্টক জেনে নিন।

01816-605963 01816-605963
SKU: albr11423 Category:

Description

Model ROG STRIX B760-I GAMING WIFI
CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset Intel® B760 Chipset
Memory 2 x DIMM, Max. 96GB, DDR5 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

Graphics 1 x DisplayPort**
1 x HDMI®***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Support [email protected] as specified in DisplayPort 1.4
*** Support [email protected] as specified in HDMI 2.1.
Expansion Slots Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet 1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3
* WiFi 6E 6GHz regulatory may vary between countries.
USB Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®)
3 x USB 2.0 ports (3 x Type-A)

Front USB (Total 5 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports

Audio ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*

Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Premium audio capacitors
* Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

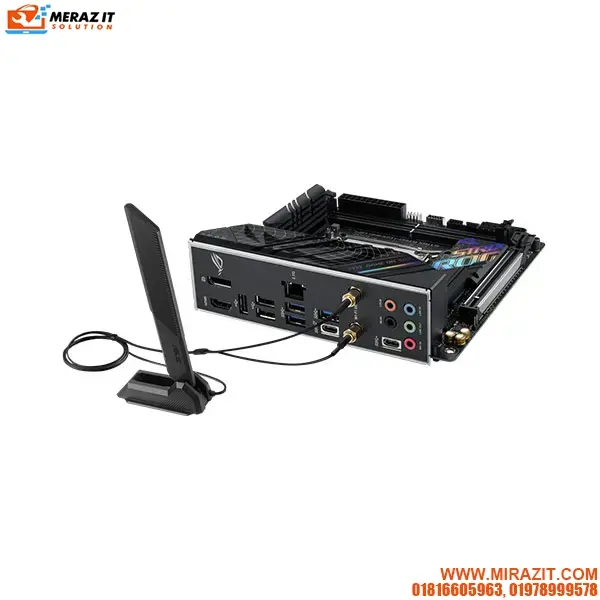

Back Panel I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®)
3 x USB 2.0 ports (3 x Type-A)
1 x HDMI® port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet
5 x Audio jacks
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chasis Fan header
1 x 4-pin AIO Pump header

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 headers support additional 2 USB 2.0 ports

Miscellaneous
1 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

Special Features Extreme Engine Digi+
– 5K Black Metallic Capacitors

ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot

ASUS Thermal Solution
– M.2 heatsink backplate

ASUS EZ DIY
-CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM

AURA Sync
– Aura RGB header
– Addressable Gen 2 header

Software Features ROG Exclusive Software
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound

ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– AURA Creator
– AURA Sync
– Fan Xpert 4
– Two-Way AI Noise Cancelation
– Power Saving
AI Suite 3
– Performance And Power Saving Utility
PC Cleaner
DIGI+ VRM
MyAsus
Norton 360 for Gamers
WinRAR

UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
MemTest86

BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel cable

Additional Cooling Kit
1 x Thermal pad for M.2

Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 Rubber Package
2 x Screw packages for M.2 SSD
1 x M.2 bracket
1 x ROG key chain
1 x ROG STRIX stickers
1 x ROG STRIX thank you card

Documentation
1 x User manual

Operating System Windows® 11 64-bit, Windows® 10 64-bit
Form Factor Mini-ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Warranty 3 Years Brand Warranty.
