Description
| Antenna | External antenna x 3 |
| Button | WPS Button, Reset Button, Power Button |
| Data Rate | 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 300 Mbps WiFi 5 (802.11ac) : up to 433 Mbps |
| LAN | DHCP Server IPTV Manually assign IP address Maximum manually assign IP address rule : 64 |
| LED Indicator | LAN x 2 Wi-Fi x 2 WAN x 1 Power x 1 |
| Memory | 8 MB Flash, 64 MB RAM |
| Operating Frequency | 2.4G Hz / 5 GHz |
| Parental Control | Parental Control Parental Control Customized Internet schedule |
| Ports | RJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000 BaseT for LAN x 2 |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 1 A current |
| Product Weight (g) | 285 g |
| Router APP | ASUS Router APP |
| Traffic | Bandwidth limiter Maximum Bandwidth limiter rule : 32 Traditional QoS Maximum Traditional QoS rule : 32 Traffic Monitor Real-time traffic monitor Wired Traffic Monitor Wireless Traffic Monitor Traffic analysis period : Daily, Weekly, Monthly |
| Transmit/Receive | MIMO technology 2.4GHz 2×2 5GHz 1×1 |
| USB application | File System : No |
| VPN | VPN Client L2TP VPN Client PPTP VPN Server PPTP |
| WAN | Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Port forwarding Maximum port forwarding rule : 64 Port triggering Maximum port triggering rule : 32 DMZ DDNS NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay |
| Wireless | IPv6 Wi-Fi Encryption : Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise UTF-8 SSID Guest Network Maximum Guest Network rule : 2.4GHz x3, 5GHz x3 Guest Network Connection time limit Guest Network Encryption : Open system, WPA/WPA2-Personal WPS WiFi MAC address filter Maximum MAC filters : 64 Wireless scheduler RADIUS Client |

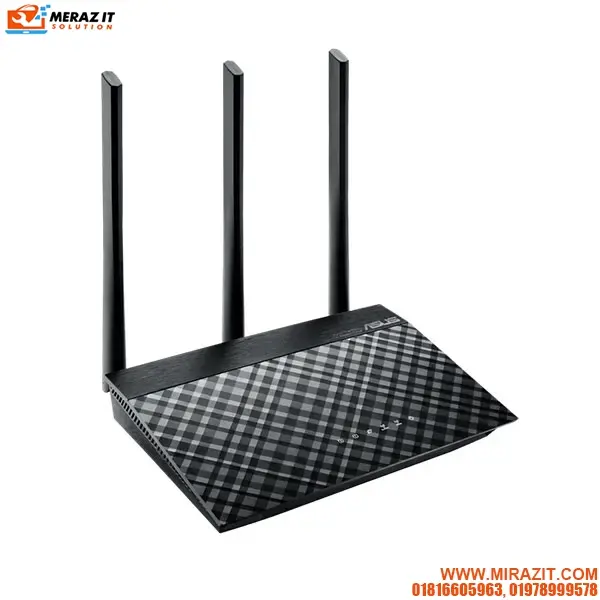

| Model Name | RT-AC53 |
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) IPv4 IPv6 |
| Package content | ．RT-AC53 Wireless-AC750 Cloud Router ．RJ-45 Cable ．Power Adapter ．Quick Start Guide ．Warranty Card |
| Administration | Operating mode : Accesspoint, Router Operating system : ASUSWRT Free OS upgrade Firewall Maximum Firewall keyword filter : 64 Maximum Firewall network service filter : 32 Maximum Firewall URL filter : 64 SSH Wake on LAN (WOL) Configuration backup and restore Diagnosis tools Feedback system System log |
| Warranty | 2 Years Brand Warranty. |
