Description
| AiMesh | AiMesh:Yes Primary AiMesh router:Yes AiMesh node:Yes |
| AiProtection | AiProtection:AiProtection Pro Router Security Assessment:Yes Malicious site blocking:Yes Two-Way IPS:Yes Infected Device Prevention and Blocking;Yes |

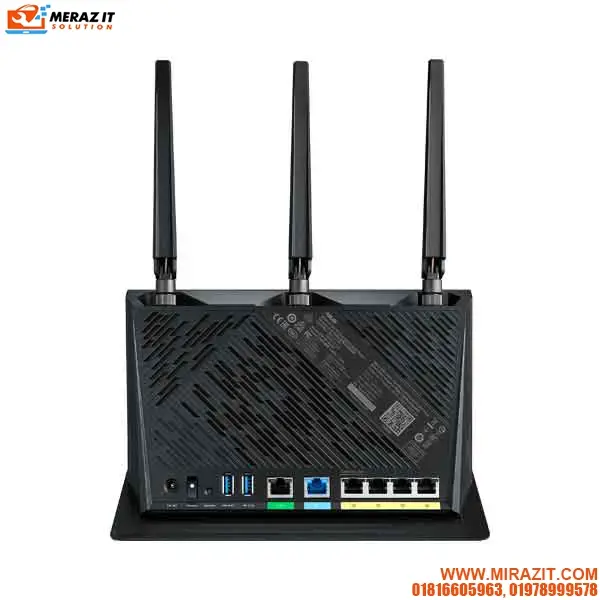

| Antenna | External antenna x 3 Internal PCB antenna x 1 |
| Button | WPS Button, Reset Button, Power Switch, LED on/off Button |
| Game | Game Boost/acceleration:No WTFast:No |
| IFTTT | Support IFTTT:No |
| LAN | DHCP Server:Yes IGMP snooping:Yes IPTV:Yes LAN Link Aggregation:Yes Manually assign IP address:Yes Maximum manually assign IP address rule:64 |
| LED Indicator | Power x 1 Wi-Fi x 2 2.5G Port x 1 WAN x 1 LAN x 4 WPS x 1 |
| Memory | 256 MB Flash 1 GB DDRIII RAM |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Parental Control | Parental Control:Yes Parental Control Customized Internet schedule:Yes |
| Ports | RJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000 BaseT for LAN x 4, RJ45 for 2.5G BaseT for WAN/LAN x 1 USB 3.2 Gen 1 x 2 |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current |
| Processor | 1.8 GHz quad-core processor |
| Product Weight (g) | 814.5 g |
| Router APP | ASUS Router APP:Yes |
| Speed | AX5700 ultimate AX performance |
| Traffic | Adaptive QoS:Yes Bandwidth Monitor:Yes Bandwidth limiter:Yes Maximum Bandwidth limiter rule:32 Traditional QoS:Yes Maximum Traditional QoS rule:32 Traffic Monitor:Yes Real-time traffic monitor:Yes Wired Traffic Monitor:Yes Wireless Traffic Monitor:Yes Traffic Analyzer:Yes Traffic analysis period:Daily, Weekly, Monthly Website history:Yes |
| Transmit/Receive | 2.4 GHz 3 x 3 5 GHz 4 x 4 |
| USB application | File System:HFS+, NTFS, vFAT, ext2, ext3, ext4 HDD hibernation:Yes Safely Remove disk:Yes AiCloud:Yes Download master:Yes AiDisk:Yes Media Server:Yes Time Machine:Yes Samba Server:Yes FTP Server:Yes Shared Folder privileges:Yes |
| VPN | VPN Client L2PT:Yes VPN Client OVPN:Yes VPN Client PPTP:Yes VPN Server IPSec:Yes VPN Server OVPN:Yes VPN Server PPTP:Yes |
| WAN | Internet connection Type:PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN:Yes WAN Aggregation:Yes 3G/4G LTE dongle:Yes Android tethering:Yes Port forwarding:Yes Maximum port forwarding rule:64 Port triggering:Yes Maximum port triggering rule:32 DMZ:Yes DDNS:Yes NAT Passthrough:PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay |
| Wireless | IPv6:Yes MU-MIMO:Yes Wi-Fi Encryption:WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support UTF-8 SSID:Yes Guest Network:Yes Maximum Guest Network rule:2.4GHz x3, 5GHz x3 WPS:Yes Wi-Fi MAC address filter:Yes Maximum MAC filters:64 Wireless scheduler:Yes Airtime fairness:Yes RADIUS Server:Yes Universal beamforming:Yes Explicit beamforming:Yes |
| Model Name | RT-AX86U |
| Network Standard | Standard IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11ax IPv4 IPv6 |
| AX technology | Yes |
| Package content | RT-AX86U WiFi router RJ-45 cable Power adapter Quick Start Guide Warranty card |
| Administration | Operating mode: Wireless router mode Access point mode Media bridge mode Repeater mode AiMesh node mode Operating system:ASUSWRT Free OS upgrade:Yes Firewall:Yes Maximum Firewall keyword filter:64 Maximum Firewall network service filter:32 Maximum Firewall URL filter:64 Wake on LAN (WOL):Yes SSH:Yes Configuration backup and restore:Yes Diagnosis tools:Yes Feedback system:Yes System log:Yes |
