Description
| AiMesh | AiMesh : Yes Primary AiMesh router : Yes AiMesh node : Yes |
| AiProtection | AiProtection : AiProtection Pro Router Security Assessment : Yes Malicious site blocking : Yes Two-Way IPS : Yes Infected Device Prevention and Blocking ; Yes |
| Antenna | External antenna x 8 |
| Boosts speed | OFDMA (Orthogonal Frequency Division Multiple Access), Beamforming: standard-based and universal, 1024-QAM high data rate, 20/40/80/160 MHz bandwidth, |
| Button | WPS Button, Reset Button, Power Button, Wireless on/off Button, LED on/off Button |
| Data Rate | 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 600 Mbps WiFi 5 (802.11ac) : up to 1000 Mbps WiFi 5 (802.11ac) : up to 4333 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 1148 Mbps WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps |
| Game | Game Boost/acceleration : Yes WTFast : No |
| IFTTT | Support IFTTT : Yes |
| LAN | DHCP Server : Yes IPTV : Yes LAN Link Aggregation : Yes Manually assign IP address : Yes Maximum manually assign IP address rule : 64 |
| LED Indicator | Power x 1 Wi-Fi x 3 WAN x 1 LAN x 1 10GE x 1 SFP+ x 1 |
| Memory | 256 MB Flash, 1 GB RAM |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Parental Control | Parental Control : Yes Parental Control Customized Internet schedule : Yes |

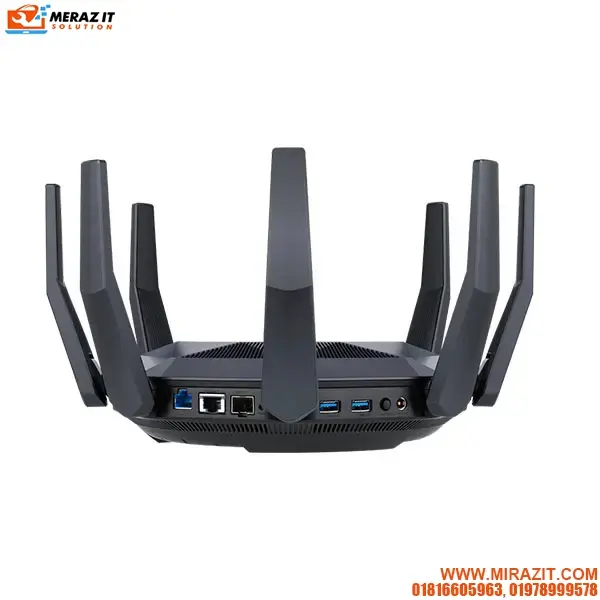

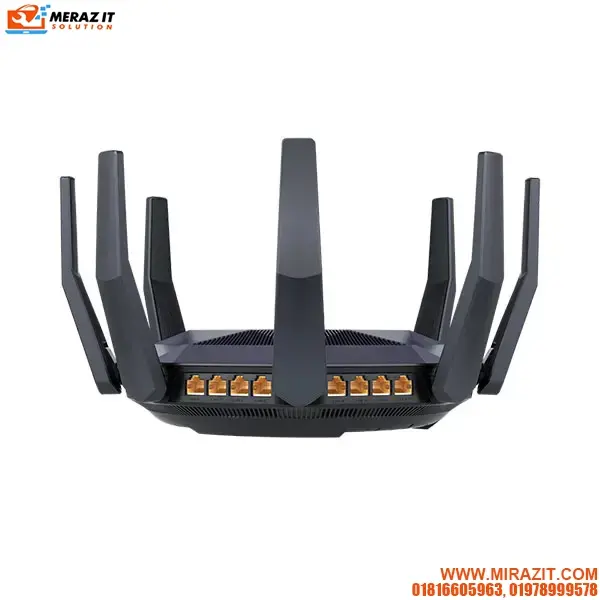

| Ports | RJ45 for 10Gbps BaseT for WAN/LAN x 1, RJ45 for 1Gbps BaseT for LAN x 8, RJ45 for 1Gbps BaseT for WAN x 1 USB 3.1 Gen 1 x 2 SFP+ x 1 |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 19V 3.42A |
| Processor | 2.2GHz quad-core processor |
| Product Weight (g) | 1280 g |
| Router APP | ASUS Router APP : Yes |
| Traffic | Adaptive QoS : Yes Bandwidth Monitor : Yes Bandwidth limiter : Yes Maximum Bandwidth limiter rule : 32 Traditional QoS : Yes Maximum Traditional QoS rule : 32 Traffic Monitor : Yes Real-time traffic monitor : Yes Wired Traffic Monitor : Yes Wireless Traffic Monitor : Yes Traffic Analyzer : Yes Traffic analysis period : Daily, Weekly, Monthly Website history : Yes |
| Transmit/Receive | 2.4GHz 4×4 5GHz 8×8 |
| USB application | File System : FS_Tuxera_HFS+,FS_Tuxera_NTFS,FS_Tuxera_vFAT,FS_ext2,FS_ext3,FS_ext4 3G/4G LTE dongle : Yes HDD hibernation : Yes Safely Remove disk : Yes AiCloud : Yes Download master : Yes AiDisk : Yes Media Server : Yes Time Machine : Yes Samba Server : Yes FTP Server : Yes Shared Folder privileges : Yes |
| VPN | VPN Client L2PT : Yes VPN Client OVPN : Yes VPN Client PPTP : Yes VPN Server IPSec : Yes VPN Server OVPN : Yes VPN Server PPTP : Yes VPN Fusion : No |
| WAN | Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN : Yes WAN Aggregation : Yes 3G/4G LTE dongle : Yes Android tethering : Yes Port forwarding : Yes Maximum port forwarding rule : 64 Port triggering : Yes Maximum port triggering rule : 32 DMZ : Yes DDNS : Yes NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay Let’s Encrypt : Yes |
| Wireless | IPv6 : Yes MU-MIMO : Yes Wi-Fi Encryption : WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support UTF-8 SSID : Yes Guest Network : Yes Maximum Guest Network rule : 2.4GHzx3、5GHzx3 Guest Network Encryption : Open system, WPA/WPA2-Personal WPS : Yes Wi-Fi MAC address filter : Yes Maximum MAC filters : 64 Wireless scheduler : Yes Airtime fairness : Yes RADIUS Server : Yes Universal beamforming : Yes Explicit beamforming : Yes IGMP snooping : Yes |
| Model Name | RT-AX89X |
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 |
| AX technology | Yes |
| Package content | RJ45 x1 Adapter x1 QSG x1 Warranty Card x1 RT-AX89X x1 |
| Administration | Operating mode : Accesspoint, AiMeshnode, Mediabridge, Repeater, Router Operating system : ASUSWRT Free OS upgrade : Yes Firewall : Yes Maximum Firewall keyword filter : 64 Maximum Firewall network service filter : 32 Maximum Firewall URL filter : 64 Wake on LAN (WOL) : Yes SSH : Yes Configuration backup and restore : Yes Diagnosis tools : Yes Feedback system : Yes System log : Yes |
| Warranty | 2 Years. |
