Description

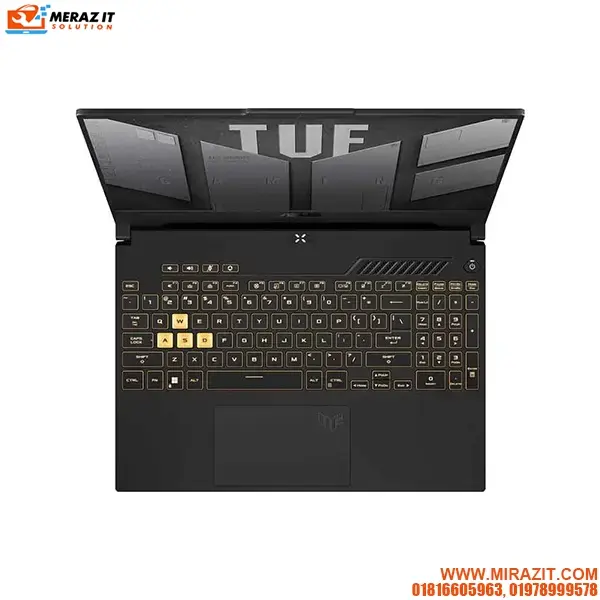

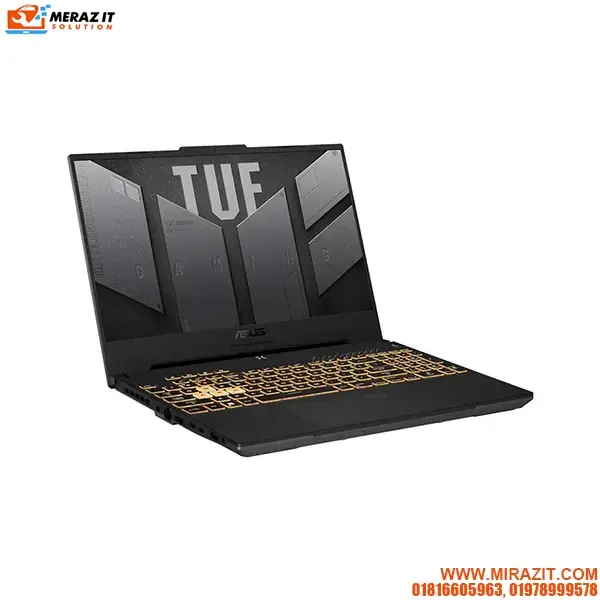

| Model Name | ASUS TUF Gaming F15 |
| Model | FX507ZC-HF087W |
| Color | Jaeger Gray |
| Dimension (W x D x H) | 35.4 x 25.1 x 2.24 ~ 2.49 cm |
| Weight | 2.20 Kg |
| Processor | 12th Gen Intel® Core™ i7-12700H Processor 2.3 GHz (24M Cache, up to 4.7 GHz, 14 cores: 6 P-cores and 8 E-cores) |
| Chipset | N/A |
| Discrete/Optimus | MUX Switch + Optimus |
| Graphic | NVIDIA® GeForce RTX™ 3050 Laptop GPU |
| Graphic Wattage | 1790MHz* at 95W (1740MHz Boost Clock+50MHz OC, 80W+15W Dynamic Boost) |
| Graphic Memory | 4GB GDDR6 |
| IGPU | Intel® Iris Xᵉ Graphics |
| Panel Size | 15.6-inch |
| Resolution | FHD (1920 x 1080) 16:9 |
| Refresh Rate | 300Hz |
| Viewing Angle | 170 |
| Panel Tech | IPS-level |
| Brightness | 300nits |
| Contrast | 1000:1 |
| NTSC % | 72% |
| SRGB % | 100% |
| Adobe % | 75.35% |
| Anti glare | Anti-glare display |
| Adaptive-Sync technology | Adaptive-Sync |
| Pantone | N/A |
| Support Dolby Vision HDR | N/A |
| On board memory | N/A |
| DIMM Memory | 8GB DDR5-4800 SO-DIMM |
| Total System Memory | DDR5 8GB |
| Memory Slot | 2x SO-DIMM slots |
| Memory Max. | 32GB |
| Multi-channel memory technology | Support dual channel memory |
| System Storage | 512GB PCIe® 3.0 NVMe™ M.2 SSD |
| M.2 slots support either SATA or NVMe | 2 |
| M.2 SSD Support List | M.2 PCIe 512GB M.2 PCIe 1TB |
| Expansion Slot (includes used) | 2x DDR5 SO-DIMM slots |
| LAN | 10/100/1000 Mbps |
| Wi-Fi/Bluetooth | Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.2 (*Bluetooth® version may change with OS version different.) |
| I/O Ports | 1x RJ45 LAN port 1x Thunderbolt™ 4 support DisplayPort™ 1x USB 3.2 Gen 2 Type-C support DisplayPort™ / G-SYNC 2x USB 3.2 Gen 1 Type-A |
| Display output | 1x HDMI 2.1 TMDS |
| Audio | 1x 3.5mm Combo Audio Jack |
| Webcam | 720P HD camera |
| Mic | Built-in array microphone |
| Keyboard Type | Backlit Chiclet Keyboard 1-Zone RGB |
| NumberPad | N/A |
| Aura Sync | Yes |
| Speakers | 2-speaker system |
| Audio Tech | “AI noise-canceling technology Dolby Atmos Hi-Res certification” |
| Operating System | Windows 11 Home |
| Antivirus | MCAFEE_30D |
| Xbox Game Pass | Xbox Game Pass Ultimate_1 month (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) |
| Security | BIOS Administrator Password and User Password Protection Kensington Security Slot™ Trusted Platform Module (Firmware TPM) |
| Battery | 56WHrs, 4S1P, 4-cell Li-ion |
| Power | ø6.0, 200W AC Adapter, Output: 20V DC, 10A, 200W, Input: 100-240V AC, 50/60Hz universal |
| Bundled Peripherals | TUF backpack |
| Additional Accessories | P304 TUF GAMING M5 V2 |
| Warranty | 2 Years Brand Warranty |
