Description

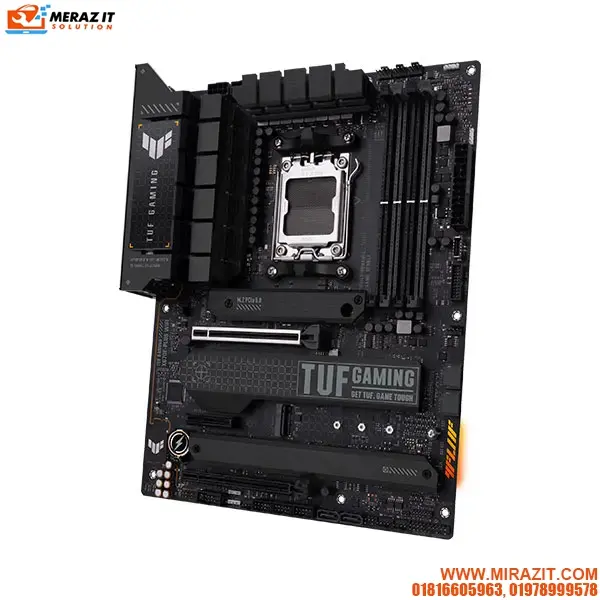

| Model | TUF GAMING X670E-PLUS WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* |
| Chipset | AMD X670 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II |
| Graphics | 1 x DisplayPort** 1 x HDMI® port*** * Graphics specifications may vary between CPU types. ** Supports max. [email protected] as specified in DisplayPort 1.4. *** Supports [email protected] as specified in HDMI 2.1. |
| Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors* -1 x PCIe 5.0 x16 slot AMD X670 Chipset -1 x PCIe 4.0 x16 slot (supports x4 mode) -1 x PCIe 4.0 x4 slots |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports *AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. ** M.2_2 slot shares bandwidth with SATA6G_1&2. When M.2_2 runs at PCIe x4 mode, SATA6G_1&2 will be disabled. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries. |
| USB | Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) 5 x USB 3.2 Gen 1 ports (5 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback* Audio Features – Audio shielding – Premium audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C®) 5 x USB 3.2 Gen 1 ports (5 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |
| Special Features | TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) – ESD Guards – LANGuard – Overvoltage Protection – Safeslot Core+ – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Clear CMOS header – ProCool – Pre-mounted I/O shield – SafeSlot – SafeDIMM AURA Sync – AURA RGB header – Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software Armoury Crate – AURA Sync – Fan Xpert 4 (with AI Cooling II) – Power Saving – Two-Way AI Noise Cancellation AI Suite 3 – Easy Optimization – DIGI+ VRM – Turbo app – PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 2 x Rubber packages for M.2 2 x Screw packages for M.2 SSD Documentation 1 x TUF certification card 1 x User guide |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 3 Years Brand Warranty. |
