Description

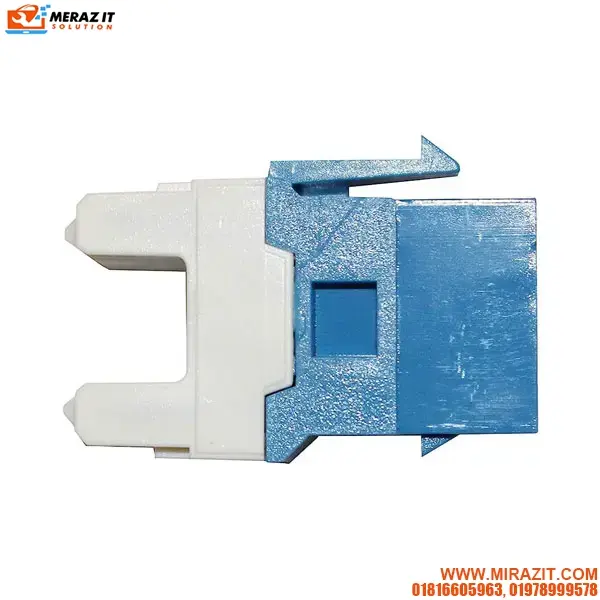

| Brand | BELDEN |
| Part No | AX104193 |
| Origin | USA |
| Suitable Applications | “IBDN System 2400, 3600 and 4800, TIA Category 6+, ISO Class E, 1000 BASE-T, Support Power over Ethernet (up to 100W), Cisco UPOE (up to 60W) and Power over HDBase-T (up to 100W) “ |
| Height | 0.88 |
| Width | 0.64 |
| Depth | 1.29 |
| Front Connection (Material) | Copper Allow with 50u inch Gold over Nickel, n Lead Frame type |
| Rear Connection (Material) | Copper Allow with Nickel Plating. IDC type |
| Connector Body (Material) | Plastic – UL940V-0 |
| Color | Blue |
| Wiring Scheme | T568A/B |
| Weight | 0.014 lbs |
| Included Parts | 1 T-Bar |
| Packaging | Individually packaged in a plastic bag. Standard pack of 50 units. |
| Operating Temperature Range | -10°C To +60°C |
| Plug / Jack Compatibility | RJ45, RJ11 |
| Telecommunications Standards | ISO/IEC 11801:2002 Ed.2, Category 6 – ANSI/TIA 568.2-D |
| Other Specification | |
| Third Party Performance Verification | ETL – Verified Category 6 |
