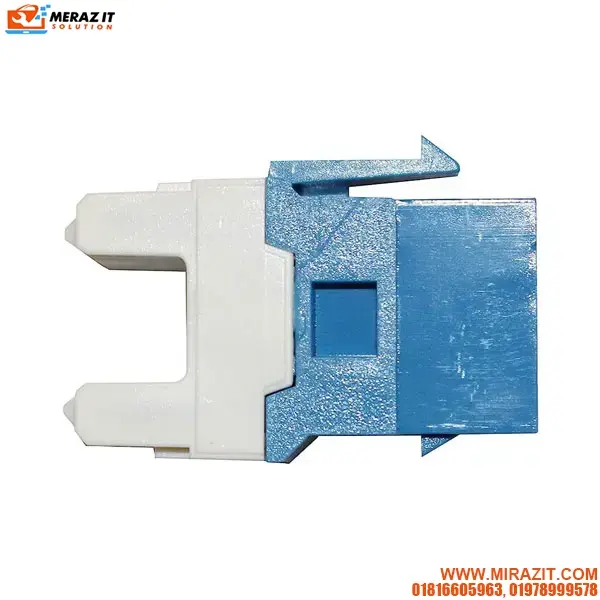

Belden AX104193 Cat 6 UTP Modular For Face Plate – Blue

৳ 380

Brand: BELDEN
Part No: AX104193
Origin: USA
Suitable Applications: IBDN System 2400, 3600 and 4800, TIA Category 6+, ISO Class E, 1000

অর্ডার করার পূর্বে অবশ্যই প্রোডাক্ট এর স্টক জেনে নিন।

01816-605963 01816-605963
SKU: albr9463 Category:

Description

Brand BELDEN
Part No AX104193
Origin USA
Suitable Applications “IBDN System 2400, 3600 and 4800, TIA Category 6+, ISO Class E, 1000 BASE-T, Support Power over Ethernet (up to 100W), Cisco UPOE (up to 60W) and Power over HDBase-T (up to 100W) “
Height 0.88
Width 0.64
Depth 1.29
Front Connection (Material) Copper Allow with 50u inch Gold over Nickel, n Lead Frame type
Rear Connection (Material) Copper Allow with Nickel Plating. IDC type
Connector Body (Material) Plastic – UL940V-0
Color Blue
Wiring Scheme T568A/B
Weight 0.014 lbs
Included Parts 1 T-Bar
Packaging Individually packaged in a plastic bag. Standard pack of 50 units.
Operating Temperature Range -10°C To +60°C
Plug / Jack Compatibility RJ45, RJ11
Telecommunications Standards ISO/IEC 11801:2002 Ed.2, Category 6 – ANSI/TIA 568.2-D
Other Specification
Third Party Performance Verification ETL – Verified Category 6
