Description

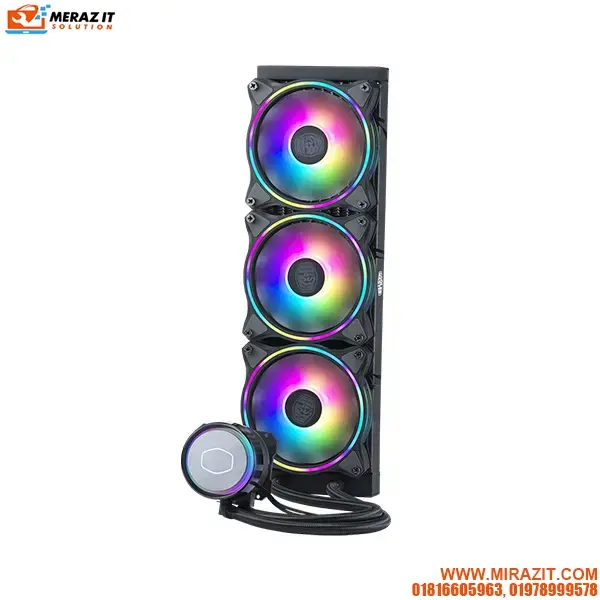

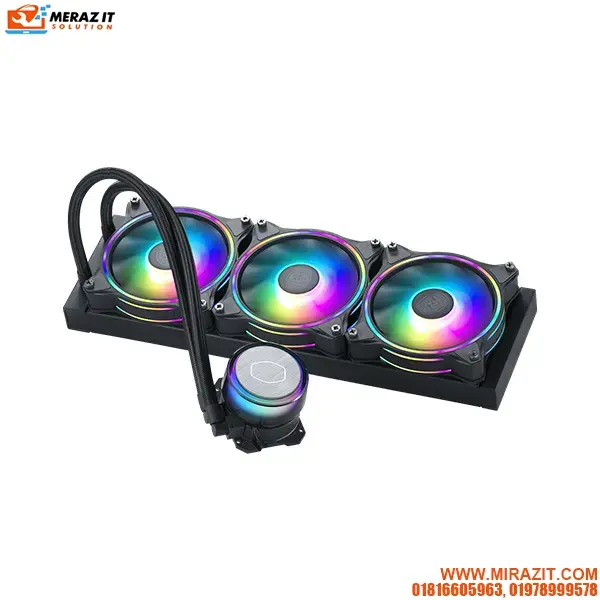

| Model | MasterLiquid ML360 Illusion |
| Model Number | MLX-D36M-A18P2-R1 |
| Cooler Type | CPU Liquid Cooler |
| Radiator Size | 360 |
| Color | Black |
| CPU Socket | LGA1700*, LGA1200, LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 |
| Radiator Material | Aluminum |
| Radiator Dimensions | 394 x 119.6 x 27.2 mm / 15.5 x 4.7 x 1.1 inch |
| Pump Dimensions | 81.4 x 76 x 57.8 mm / 3.2 x 3 x 2.3 inch |
| Pump MTTF | 70,000 Hours |
| Pump Noise Level | <10 dBA |
| Pump Connector | 3-Pin |
| Pump Rated Voltage | 12 VDC |
| Pump Power Consumption | 2.36 W |
| Fan Dimensions (L x W x H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
| Fan Quantity | 3 PCS |
| Fan LED Type | Addressable Gen 2 RGB |
| Fan Speed | 650-1800 RPM (PWM) ± 10% |
| Fan Airflow | 47.2 (Max) |
| Fan Noise Level | 6 – 30 dBA |
| Fan Pressure | 1.60 mmH₂O (Max) |
| Fan Life Expectancy | 160,000 Hours |
| Fan Power Connector | 4-Pin (PWM) |
| Fan Rated Voltage | 12VDC |
| Fan Rated Current | 0.25A |
| Warranty | 3-Years Brand Warranty |
