Description
Data Rate | Ethernet: 10Mbps (Half Duplex)/20Mbps (Full Duplex) Fast Ethernet: 100Mbps (Half Duplex)/200Mbps (Full Duplex) |
LED Indicators | LAN~LAN8, Power |

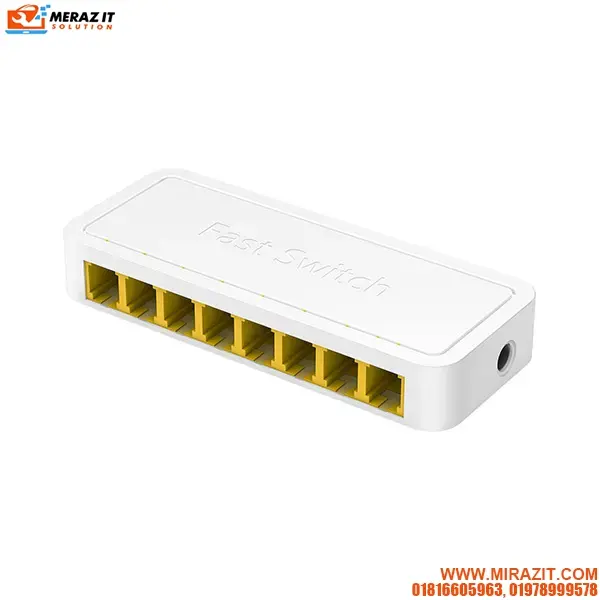

Model | FS108D |
Network Protocol | CSMA/CD |
Interface | 8 x 10/100Base-TX Port |
Network Switch | MAC address auto-learning and auto-aging Half and Full Duplex 1.6Gbps backplane bandwidth |
Dimensions (L*W*H) | 130.7mm x 52.3mm x 20mm |
Power supply | DC 5V 0.5A |
MAC Address | 2K entries per device |
Transfer Mode | Store-and-Forward |
Machine weight | 191g |
Operating Temperature | 0°C~40°C (32°F~104°F) |
Storage Temperature | -40°C~70°C (-40°F~158°F) |
Storage Humidity | 5%~95%, non-condensing |
Warranty | 1 Year Brand Warranty |
