Description

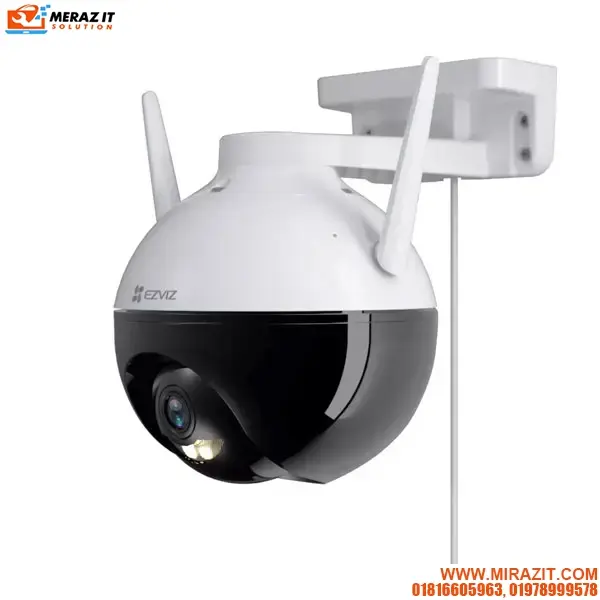

| Model Parameters | Model: CS-C8C (1080P) |
| Camera | Image Sensor: 1/2.7″ Progressive Scan CMOS Shutter Speed: Self-adaptive shutter Lens: 4mm @ F1.6, view angle: 87° (Horizontal), 105° (Diagonal) 6mm @ F1.6, view angle:55° (Horizontal), 66° (Diagonal) PT Angle: Pan: 352°, Tilt: 95° Minimum Illumination: 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR Lens Mount: M12 Day & Night: IR-cut filter with auto-switching DNR: 3D DNR WDR: Digital WDR BLC: Supports Black & White Night: 30 m / 100 ft. |
| Video & Audio | Max. Resolution 1920 × 1080 Frame Rate: Max:30 fps; Self-Adaptive during network transmission Video Compression: H.265 / H.264 Video Bit Rate: Full HD; Hi-Def; Standard. Adaptive bit rate. Audio Bit Rate: Self-Adaptive Max. Bitrate: 2 Mbps |
| Storage | Local Storage: MicroSD card slot (Max. 256G) Cloud Storage: EZVIZ Cloud Storage |
| Function | Smart Alarm: AI Person Detection Customized Alert Area: Supports Audio: Supports mic General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Network | Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n Frequency Range: 2.4 GHz ~ 2.4835 GHz Channel Bandwidth: Supports 20 MHz Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK Transmission Rate: 11b: 11Mbps, 11g : 54Mbps, 11n: 72Mbps Wi-Fi Pairing: AP pairing Protocol: EZVIZ cloud proprietary protocol Interface Protocol: EZVIZ cloud proprietary protocol Wired Network: RJ45 × 1 (10 M / 100 M Adaptive Ethernet Port) |
| General | Operating Conditions: -30°C ~ 60°C (14°F to 113 °F), Humidity 95% or less (non-condensing) IP Grade: IP65 Power Supply: DC 12V / 1A Power Consumption: MAX. 6W Dimensions: 158 x 157 x 149 mm (6.22 x 6.18 x 5.87 inch) Packaging Dimensions: 197 x 185 x 205 mm (7.76 x 7.28 x 8.07 inch) Weight: 885 g (31.22 oz) Net Weight: 510 g (17.99 oz) |
| In the box | In the box: C8C Camera 1.5-Meter Power Adapter Screw Kit Waterproof Kit Drill Template Regulatory Information Quick Start Guide |
| Certifications | Certifications: UL / FCC / CE / WEEE / REACH/ ROHS |
