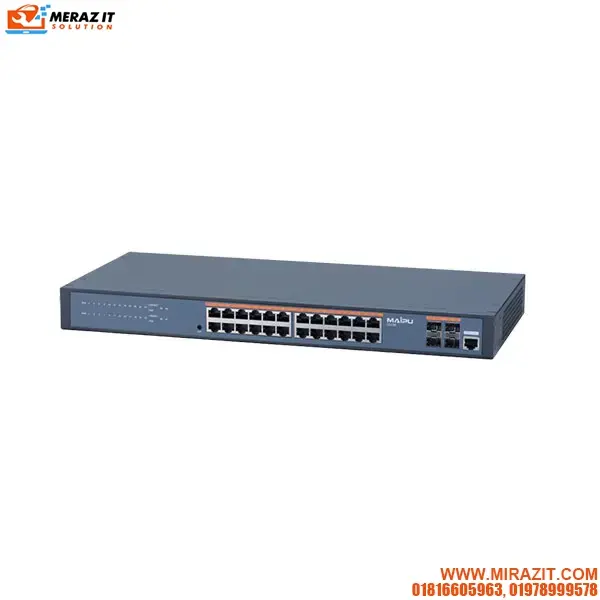

Maipu IS230-28TP-AC 24 Ports PoE Managed Switch

৳ 0

Access Port: 24*10/100/1000M Base-T
Uplink Port; 4*1000M SFP
Switching capability (Gbps): 56Gbps
Throughput (Mpps): 41.6Mpps
Call Info>

CALL FOR DETAILS: 01958510839

Out of stock

অর্ডার করার পূর্বে অবশ্যই প্রোডাক্ট এর স্টক জেনে নিন।

01816-605963 01816-605963
SKU: albr9443 Category:

Description

Frame Model IS230-28TP-AC
Product Configuration Structure: Desktop
Access Port: 24*10/100/1000M Base-T
Uplink Port; 4*1000M SFP
Performance Parameters Switching capability (Gbps): 56Gbps
Throughput (Mpps): 41.6Mpps
PoE & PoE+ Budget: 380W
Buffer: 4.1Mbit
Jumbo frames: 9KBytes
MAC entries: 8K
VLAN: 4K
Link Aggregation: 8
QinQ: Yes
Queue/Port: 8
Multicast groups: 512
Standards & Protocols L2 protocol:
VLAN, Private VLAN, Voice VLAN, GVRP, MSTP, BPDU guard, Traffic control, broadcast storm suppression, external loop detection, link aggregation, 1:1 port mirroring, LLDP, Aging time and add/remove static MAC, mac-address management 1:1 and N:1 VLAN mapping

Multicast: IGMP compatible, IGMP Snooping, Fast leave, multicast VLAN, MLD

QoS:
Each port supports 8 queues,
Supporting 802.1p/TOS/DSCP priority and mapping Port speed limitation and traffic monitoring Queue scheduling: SP, WRR, SP+WRR
Rate Limit, Bandwidth control based on port Storm Control

Application protocol: FTP, TFTP, HTTP, SNTP, DNS Client, DHCP Client, DHCP Snooping, Option82
