Description

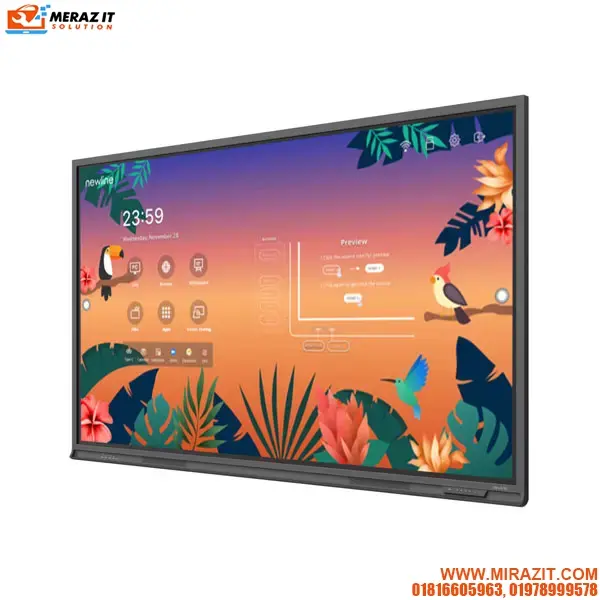

| Product Information | Brand: Newline Model: TT7521Q Country of origin: USA |
| Display | Active Screen Size (“inch): 75” Display Backlight: DLED Display Area: 1652 x 930mm Display Ratio: 16:9 or better Resolution: 3840*2160 (UHD) 4K Display Colors: 10 bit LCD Brightness: 450cd/m2 Contrast Ratio: 15000:1 Response Time: 4ms Viewing Angle: 178∘ Life time (working hours):>50,000 hours Display Orientation: Landscape Reference Frequency: 120Hz or better |
| Power Consumption | Power Consumption: <240W (ECO Mode) & Standby mode <0.5W Working Voltage: AC100-240V Max 6.2A |
| Touch | Touch Technology Deployment: Touch feature should be seamlessly build-in the display and NO overlay is allowed Touch Sensor: Advanced IR Surface Material of Touch Surface: Anti-Glare + Anti-Fingerprint + Antimicrobial Tempered Glass Haze: 2%~5% Touch Screen Writing Tools: Nano Pen (>2mm width) included or Finger Touch Response Time: 4ms Positioning Accuracy: ±1mm Transmission Range: 5M Transparency:>88% Surface Hardness: H7 or More than H7 Glass Thickness: 4 mm HID Support: Connect with any external sources Touch Points : Up to 20 points Writing Tool: Nano Pen (>2mm width) included or Finger Scan Speed: 133Hz or better Communication Interface: Inbuilt USB-B type |
| Speaker | Speakers: SEAMLESSLY build-in the display Power Output: 2×20 Watts Speaker Position: Bottom front side of the display Rated Impedance: 6Ω Freq. Response: 180Hz-20kHz Output S.P.L.: 0dB~ -10dB |
| Transportation/Storage | Storage Temperature/Humidity: -20~60°C 0~90%RH (non-condensing) Working Temperature/Humidity: 0~40°C 20~80%RH (non-condensing) Mounting Capabilities: Display must have facility to mount on floor stand or wall brackets |
| Android Smart System | CPU: A73*4 + A53*4 (4 Core + 4 Core) GPU: G52*8 (8 Core) RAM: 4GB DDR4 ROM: 32GB (build in) External Memory: 32GB TF card (build in) Total In-built Memory: 64GB ( Inbuilt TF Card slot support max 64GB) Android Version: 11 Discussion / White Board: Build-in white board ( seamless writing)have WB Split option ,in-built Google search / web search option and play YouTube videos, different pen color settings , highlighter , pre defined shapes, unlimited page settings, pixel eraser / regional eraser , background & patterns, import settings, infinity canvas , object recognition, Math tools, import & Export options ,Sticky note , Visualizer – camera option to bring papers / objected in to whiteboard in to a live video, undo & redo option , Google drive login , after the presentation the inbuilt WB have the option to send White annotation via email or save in internal memory or save in cloud or QR code scanner to export all the WB content into image / PDF Cast: A wireless presentation software comes with inbuilt for in room presentation Maximum connectivity of BYOD devices – 4 / 6 users ( Android 4 user / Win 6 user) Control – The setup should be in such a way that the presenter should have control of the GUI of this Remote Interactive Presentation Kit from the Touch Interactive Flat Panel Display. Display capability – Equipment capability to display 4 /6 sources at a time system Supported – Win/Mac/ios/Android Display Management System: A remote display management solution Centrally manage interactive displays in any location through a secure and dedicated web portal. Easily manage and deploy apps, configure display settings, use the digital signage features or broadcast messages to all displays. Broadcast: SHARE CONTENT TO AUDIENCES OF ANY SIZE HASSLE-FREE BROADCASTING Joining the broadcast is simple: Access the Broadcast webpage and Share screen in real-time from your display to any participant connected. Easily invite up to 200 participants to connect their own device from the meeting room, classroom, lecture theater or any other place in the world with a network connection. Business calendar: A pre loaded business calendar is available can set schedules and synchronize with Google calendar for meeting room schedules User Profile settings User can create their own profile ( 5 User , 1 Admin & 1 guest ) Bluetooth : Yes OTA Firmware Management: Remotely manage firmware and software updates with no user intervention Smart Eye protection: Smart Eye protect t keep your eye vision safe from IFPD’s light Blue light filter: Blue light contributes to digital eye strain; IFPD’s glasses that block blue light may increase comfort for users Palm Rejection: Palm Rejection feature is enabled Wifi Module : Built-in Wi-Fi 6 module, with a frequency range of 2.4/5 GHz |
| AV Ports | AV Inputs at front side: USB Type-C (PD 65W) x1 HDMI IN 2.0 ([email protected]): x1 USB Type-B (Touch): x1 USB 3.0 Type-A: x1 Microphone In: x1 AV Inputs at rear side: HDMI IN 2.0 x1 DisplayPort: 1.2 USB Type-B (Touch): x1 USB 3.0 Type-C (no PD): x1 AV Outputs at rear side: SPDIF out x1 Audio Line out: x1 HDMI OUT 2.0: x1 Other ports at rear side: WIFI module slot (wifi module is standard) RS232: x1 RJ45 (Gigabit): IN*1 & OUT*1 OPS Slot x1 USB 3.0 Type-A: x1 USB 3.0 Type-A to Android: x1 |
| Warranty | 3 years full warranty |
