Description

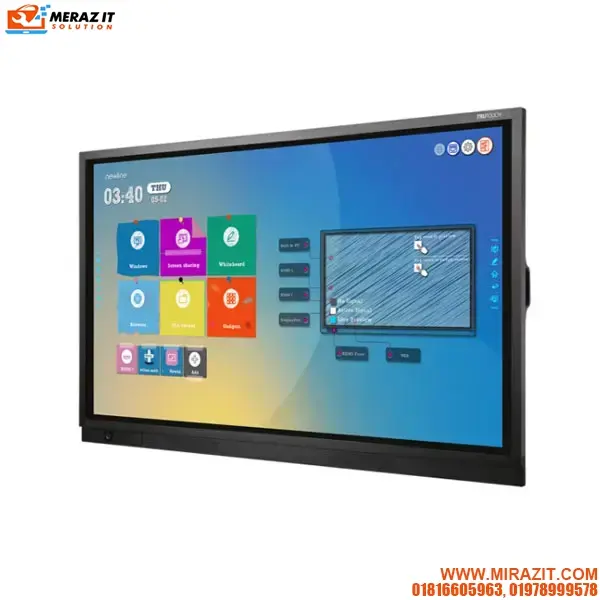

Product Information | Brand: Newline Model: TT-8619RS Country of origin: USA |
Display | Active Screen Size (“inch): 86” Display Backlight: DLED Display Area: 1893*1069mm Display Ratio: 16:9 Resolution: 3840*2160 (UHD) 4K Display Colors: 10 bit LCD Brightness: 500cd/m2 Contrast Ratio: 15000:1 Response Time : 4ms Viewing Angle: 178∘ Life time (working hours):>50,000 hours Display Orientation: Landscape Reference Frequency: 120Hz |
Power Consumption | Power Consumption: ≤450W Standby Mode: ≤0.5W Working Voltage: AC 100-240V, 50/60Hz |
Touch | Touch Surface Material: Toughened Tempered glass Touch Surface Technology: Anti-Glare glass Transparency:>88% Haze: 2%~5% Touch Surface Hardness: H7 level Density of the Glass: 2500 kg/m3 Touch Sensor: Infrared Touch Touch Points: Up to 20 points Touch Screen Writing Tools: Nano Pen (>3mm width) included or Finger TOUCH Response time: ≤4ms Positioning Accuracy: ±1mm Transmission Range: 5M Communication Interface: USB |
Speaker | Speaker Position: Forward Speaker Rated Impedance: 8Ω Speaker Freq. Response: 180Hz-20kHz Speaker Power Output: 15W*2 |
Transportation/Storage | Storage Temperature/Humidity: -15℃~55℃/20~90%RH(Non coagulation) Working Temperature/Humidity: 0℃-40℃/20~80%RH(Non coagulation) Installation Method : Wall-mounted Outline Dimension (without wall mount bracket thickness): 2019*1212*109mm Width of the Bezel : 18.05+ – 0.2mm VESA Mount installation position: 800x400mm |
Android Smart System | CPU: ARMv8 A73*2+A53*2 ( A53 : 1.05-1.3GHz; A73 : 1.15-1.5GHz) GPU: Mali-G51MP2, 650 MHz RAM: 3GB ROM: 16GB build in External Memory: 32GB (build in) Total In-built Memory: 48GB ( Inbuilt TF Card slot support max 64GB) Android Version: 8.0.0 Intelligent thermal protector: Automatic Hibernate when over heated Discussion / White Board: Build-in white board (seamless writing) with different size of pen thickness. Built-in Option to import picture and annotate over on that. Built-in Option to access browser in Android whiteboard Display Management: CENTRALLY MANAGE ALL YOUR INTERACTIVE DISPLAYS : Easily manage and deploy apps, configure display settings, use digital signage features or broadcast emergency messages to all interactive displays, without ever having to leave your desk. Cast system: A wireless presentation software inbuilt for in room presentation. Minimum connectivity of BYOD devices – 4 / 6 users ( Android 4 user / Windows minimum 6 user) Control – The setup should be in such a way that the presenter should have control of the GUI of this Remote Interactive Presentation Kit from the Touch Interactive Flat Panel Display. Display capability – Equipment capability to display 4 /6 sources at a time system Supported – Win/Mac/ios/Android Broadcast facility: SHARE CONTENT TO AUDIENCES OF ANY SIZE HASSLE-FREE BROADCASTING Joining the broadcast facility: Access the Broadcast webpage and Share your screen in real-time from display to any participant connected. Easily invite 200 participants to connect their own device from the meeting room, classroom, lecture theater or any other place in the world with a network connection. Business calendar: A pre loaded business calendar is available can set schedules and synchronize with Google calendar for meeting room/classroom schedules Smart Eye Protection: Smart Eye Protect keep eye vision safe from IFPD’s light Blue light filter: Blue light contributes to digital eye strain; IFPD’s glasses that block blue light may increase comfort for users |
AV Ports | Front Interface Inputs : HDMI 1.4 x1, USB(Touch) x 1, USB(Public ) x 2,MICx1 Rear AV Inputs : HDMI 2.0([email protected]*2) x 2, DP1.2([email protected]) x 1, VGA([email protected])x1&PC Audiox1 , USB(Touch) x 4 AV Outputs: HDMI out (Support [email protected], [email protected])x 1 Other interface : USB2.0(public) x 1,USB3.0(public) x 1, USB 2.0 Embedded x 1, RS232 x 1, RJ45 x 2, OPS Slots([email protected]) x 1,DC 5V-2A out, Line Out x1, SPDIF out x1 |
Warranty | 3 years full warranty |
