Description

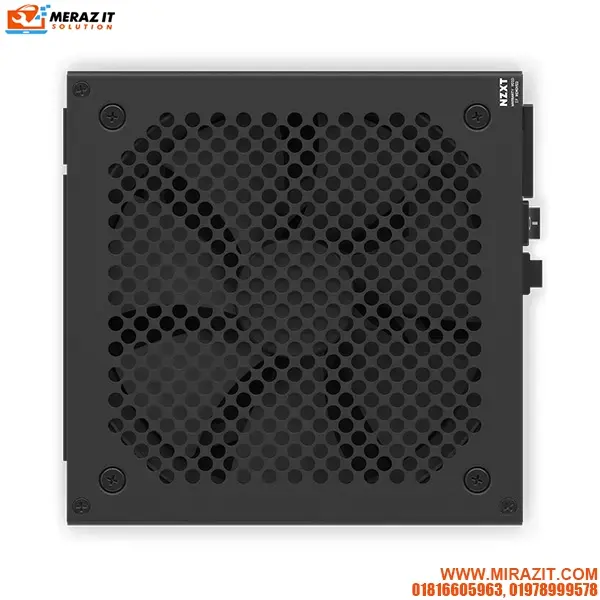

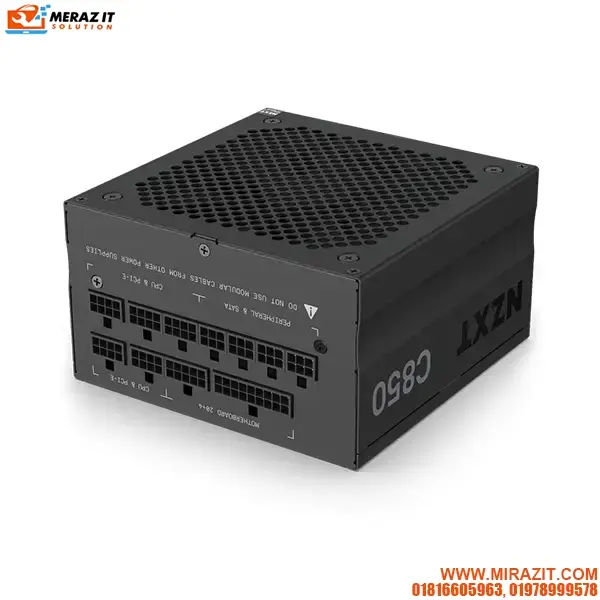

| General | Model Number: PA-8G1BB-IN Dimensions: 150 x 150 x 86mm Material(s): Steel, PCB and Plastic Compliance Standard: ATX12V v2.52 / EPS12V v2.92 |
| Energy Efficiency | Rating: 80 Plus Gold 20% loading: 87% @115Vac 50% loading: 90.5% @115Vac 100% loading: 87.5% @115Vac |
| AC Input Rating | 100 – 240Vac: 10A-5A 50Hz-60Hz |
| DC Output Rating | +3.3V and +5V: 22A (120W) +12V: 70.8A (850W) -12V: 0.3A (3.6W) 5Vsb: 3A (15W) Total: 850W |
| Output Connectors | 24-pin ATX power: 1 4+4-pin CPU power: 2 6+2-pin PCIe power: 6 SATA power: 6 Peripherals: 6 |
| Cable Specs | 24-pin ATX power: 600 mm, Nylon sleeving 4+4-pin CPU power: 700 mm, Nylon sleeving 6+2-pin PCIe power: 650 + 150 mm, Nylon sleeving SATA power: 500 + 150 mm Peripherals: 500 + 150 mm |
| Fan Specs | Dimensions: 135 x 135 x 25 mm Speed: 0-2300 ± 10% RPM Airflow: 93.02 CFM (Tpy.) Noise: 44.5 dBA max Bearing: Fluid Dynamic Bearing (FDB) |
| Operation | PF Correction: Active @0.96 MTBF: 100,000 hours Temperature: 0 – 50 °C (derating from 100% to 80% from 40 °C to 50 °C) |
| Warranty | 10-Years Brand Warranty |
