Description

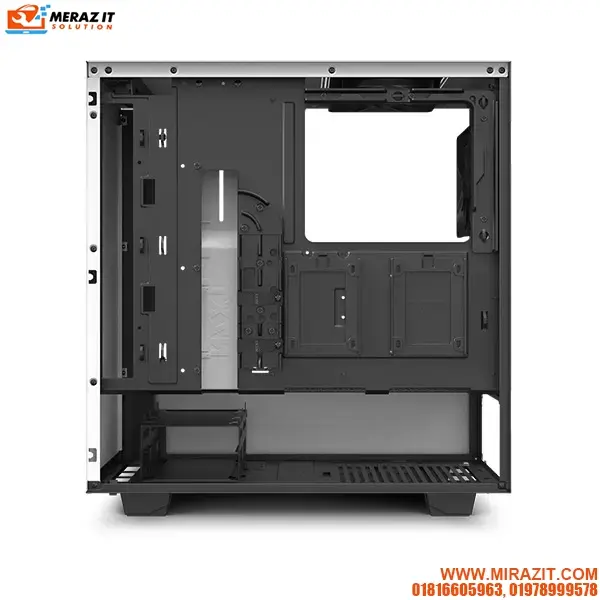

| General | Model: H510 Model Number: CA-H510B-W1 Type: Mid Tower Color: White |
| Key Specs | Motherboard Support: Mini-ITX, MicroATX, ATX Enclosure Type: Compact Mid-Tower Case Material: SGCC Steel, Tempered Glass |
| Compatibility & Clearance | Max CPU Cooler Clearance: 165mm Max GPU Clearance: 381mm Front Fan & Radiator Clearance: 60mm Cable Management: 19 – 23mm |
| Expansion Slots | Standard: 7 Vertical: N/A |
| Drive Bays | 2.5″: 2 + 1 3.5″: 2 + 1 |
| Fan Support | Front: 2 x 120mm / 2 x 140mm Top: 1 x 120mm / 1 x 140mm Rear: 1 x 120mm Filters: All air intakes |
| Fan Specs | Model: Aer P 120mm (Case Version) Speed: 1,200 ± 200RPM Airflow: 50.42 CFM Noise: 28 dBA Fan Connector: 3-pin |
| Fans Included | Front: N/A Top: 1 x Aer P 120mm (Case Version) Rear: 1 x Aer P 120mm (Case Version) |
| Radiator Support | Front: 280mm Top: N/A Rear: 120mm |
| Front I/O Ports | USB 3.2 Gen 1 Type-A: 1 USB 3.2 Gen 2 Type-C: 1 Headset Audio Jack: 1 |
| Weight & Dimensions | Height: 460mm / 18.11 inches Width: 210mm / 8.27 inches Depth: 428mm / 16.85 inches Weight: 6.6 kg / 14.55 lb |
