Description

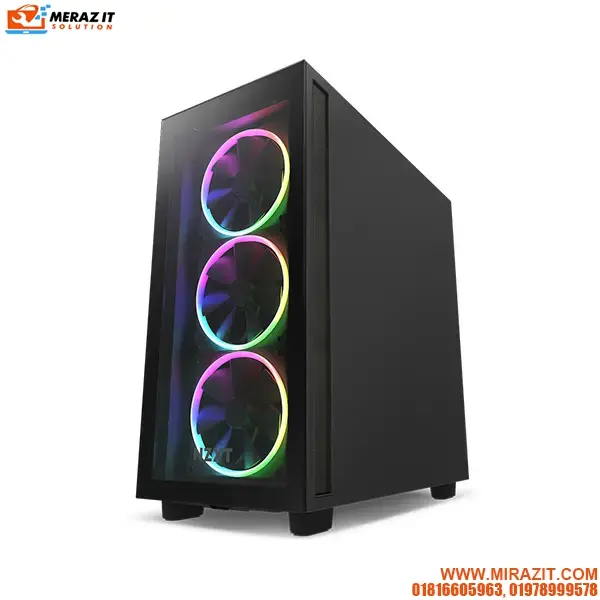

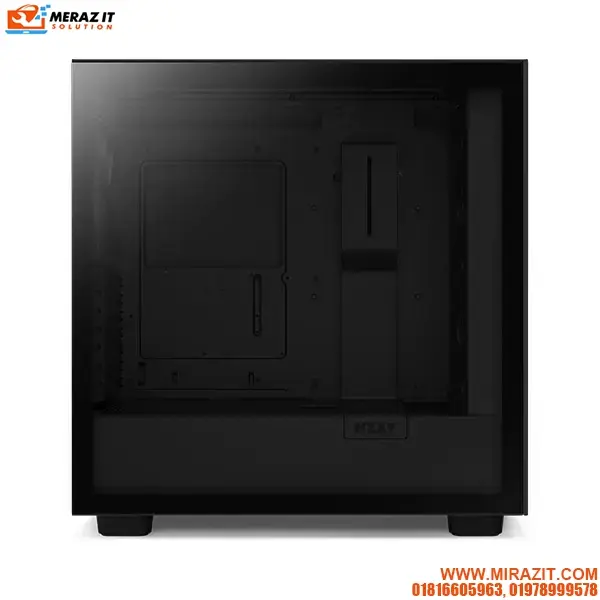

| General | Model: H7 Elite Model Number: CM-H71EB-01-Black Type: Mid-Tower Color: Black |
| Key Specs | Motherboard Support: Mini-ITX, Micro-ATX, ATX, and EATX (Up to 272mm) Enclosure Type: Mid-Tower Case Material: SGCC Steel, Tempered Glass |
| Compatibility & Clearance | Max CPU Cooler Clearance: Up to 185mm Max GPU Clearance: Up to 400mm Front Radiator Clearance: 60mm Top Radiator Clearance: 30mm Cable Management: 18-22mm |
| Expansion Slots | Standard: 7 Vertical: 0 |
| Drive Bays | 2.5″: 4+2 3.5″: 2 |
| Fan Support | Front: 3 x 120mm / 3 x 140mm Top: 3 x 120mm / 2 x 140mm Rear: 1 x 120mm / 1 x 140mm Filters: All Air Intakes |
| Fan Specs | Model: F140Q (Case Version) Speed: 1200 ± 240RPM Airflow: 99.56 CFM Static Pressure: 1.14 mm-H2O Noise: 24.18 dBA Fan Connector: 3-pin Model: F140 RGB Fan Channels: 3 |
| Radiator Support | Front: Up to 360mm with Push/Pull Top: Up to 360mm Rear: Up to 140mm |
| Front I/O Ports | USB 3.2 Gen 1 Type-A: 2 USB 3.2 Gen 2 Type-C: 1 Headset Audio Jack: 1 |
| Weight & Dimensions | Height: 505mm (With Feet) Width: 230mm Depth: 480mm Weight: 11.36 kg |
