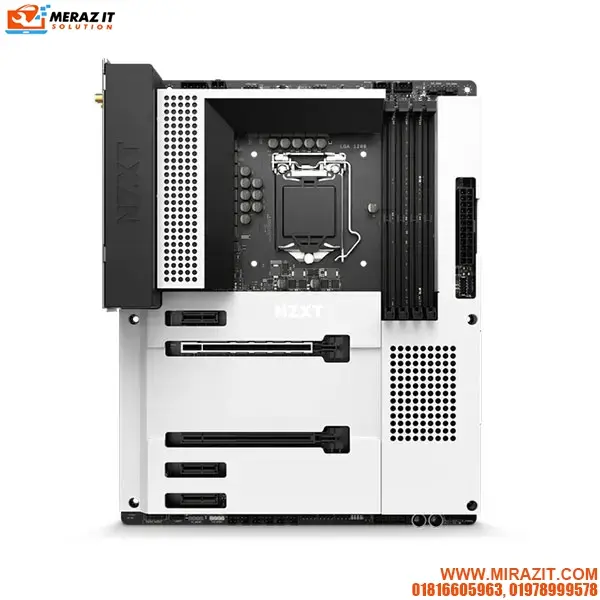

NZXT N7 Z590 Intel ATX Gaming Motherboard

৳ 26,999

Chipset: Intel Z590 for 10th and 11th Generation Processors
Socket: LGA1200
m.2 slots: 2 x m.2 slots with PCIe 3.0
USB: 6x Front ports 8x Rear ports
Memory: 4x DIMM slots, 128 GB, DDR4

অর্ডার করার পূর্বে অবশ্যই প্রোডাক্ট এর স্টক জেনে নিন।

01816-605963 01816-605963
SKU: albr4055 Category:

Description

Model NZXT N7 Z590
CPU Intel® Socket LGA1200 for 10th and 11th Generation Processors: Intel® Core™ Processors
Turbo Boost Max 3.0 Technology: Supported
Chipset Intel Z590
Graphics Integrated Graphics:
Intel® Xe Graphics (11th Gen CPUs) / UHD (10th Gen CPUs): HDMI 2.0 / HDMI 1.4b
HDMI Max Resolution: 4096×[email protected]

Multi-GPU Support:
AMD 2-Way CrossFireX™ Technology: Supported

Expansion Slots PCIe x16 (x16 mode): 1 (11th Gen CPUs – PCIe 4.0, 10th Gen CPUs – PCIe 3.0)
PCIe x16 (x4 mode): 1
PCIe 3.0 x1: 3
Storage M.2 Type 2242/2260/2280 (PCIe x4 mode): 1 (11th Gen CPUs – PCIe 4.0, 10th Gen CPUs – PCIe 3.0)
M.2 Type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode): 1
SATA 6Gb/s: 4
RAID 0/1/5/10 Support: Supported
Intel® Smart Response Technology: Supported
Intel® Rapid Storage Technology: Supported
Intel® Optane Memory: Supported
Ethernet Intel® Dual-Band Wireless: AX210 Wi-Fi 6E
Protocol: 802.11 a/b/g/n/ac/ax
Frequency Bands: 2.4 / 5 / 6 GHz
MU-MIMO Support: Supported
Bluetooth: V5.2
Memory Type DIMM Slots: 4
Max Memory Support: 128GB
Memory Architecture: Dual-Channel
OC Frequency (11th Gen CPUs): 4600+ MHz
OC Frequency (10th Gen CPUs): 4400+ MHz
Base Frequency (11th Gen CPUs): 3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Base Frequency (10th Gen CPUs): 2933 / 2800 / 2666 / 2400 / 2133 MHz
Type: Non-ECC, Un-buffered Memory
Intel® XMP 2.0 Support: Supported
Audio Realtek: ALC1220 Codec
Channels: 8-Channel High Definition Audio
Playback: 32-bit / 192kHz DAC
Capacitors: Nichicon Fine Gold Series
Back Panel I/O Ports USB 3.2 Gen 2×2 (Type-C): 1
USB 3.2 Gen 2 (Type-A): 3
USB 3.2 Gen 1 (Type-A): 4
USB 2.0: 2
HDMI™ 2.0: 1
Wireless Antenna: 2 (2T2R)
LAN (RJ45) Port: 1
5.1-Channel Audio Jacks: 1
Optical S/PDIF: 1
Clear CMOS Button: 1
Internal I/O Connectors M.2 (M Key), Type 2242/2260/2280: 1 (PCIe 4.0/3.0 x4 mode), 1 (PCIe 3.0 x4 & SATA mode)
M.2 (E Key) (For wireless cards): 1
SATA 6Gbps Ports: 4
USB 3.2 Gen 2 Header (Type-C): 1
USB 3.2 Gen 1 Header: 2 (Up to 4 ports)
USB 2.0 Header: 3 (Up to 6 ports)
Front Panel Audio: 1
CPU_FAN Connector: 1 (Up to 24W)
AIO_PUMP Connector: 1 (Up to 24W)
SYS_FAN Connector: 5 (Up to 24W)
NZXT RGB LED Header: 2
5V ARGB Header: 1
12V RGB Header: 1
24-pin EATX Power: 1
8-pin ATX 12V Power: 1
4-pin ATX 12V Power: 1
Power Button: 1
Reset Button: 1
POST LEDs: 4
Form Factor ATX
Warranty 3 Years Brand Warranty
