Description
| General Information | Type: Digital Single Lens Mirrorless camera Recording media: SD Memory Card, SDHC Memory Card, SDXC Memory Card (Compatible with UHS-I UHS Speed Class 3 standard SDHC / SDXC Memory Cards.) Image sensor size: 17.3 x 13.0 mm (in 4:3 aspect ratio) Lens mount: Micro Four Thirds mount |
| Image Sensor | Type: Live MOS Sensor Total pixels: 21.77 megapixels Camera effective pixels: 20.30 megapixels Color filter: Primary color filter Dust reduction system: No LATITUDE: 12 stops (V-Log L) MAGE STABILISATION SYSTEM: 5-axis HYBRID I.S. *For video recording only. 4-axis compensation works in 4K video recording. |
| Recording file format | Still image: JPEG (DCF, Exif 2.31), RAW 4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch) Extracted still images: JPEG (DCF, Exif 2.31) Motion picture: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch) Aspect ratio: 4:3, 3:2, 16:9, 1:1 Image quality: RAW, RAW+Fine, RAW+Standard, Fine, Standard Color space: sRGB, AdobeRGB |
| File size(Pixels) | [4:3] 5184×3888(L) / 3712×2784(M) / 2624×1968(S) / 3328×2496(4K PHOTO) [3:2] 5184×3456(L) / 3712×2480(M) / 2624×1752(S) / 3504×2336(4K PHOTO) [16:9] 5184×2920(L) / 3840×2160(M) / 1920×1080(S) / 3840×2160(4K PHOTO) [1:1] 3888×3888(L) / 2784×2784(M) / 1968×1968(S) / 2880×2880(4K PHOTO) |
| Motion picture | [4K] 3840×2160 4K/30p: 100Mbps [4K] 3840×2160 4K/25p: 100Mbps [4K] 3840×2160 4K/24p: 100Mbps [Full HD] 1920×1080 FHD/60p: 28Mbps [Full HD] 1920×1080 FHD/50p: 28Mbps [Full HD] 1920×1080 FHD/30p: 20Mbps [Full HD] 1920×1080 FHD/25p: 20Mbps [Full HD] 1920×1080 FHD/24p: 24Mbps [HD] 1280×720 HD/30p: 10Mbps [HD] 1280×720 HD/25p: 10Mbps |
| View Finder | Type: LCD Live View Finder Pixels: Approx. 3,680k dots equivalent Field of view / Magnification: Approx. 100% / Approx. 1.46x / 0.73x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1 Eye point / Diopter adjustment: Approx. 20 mm / -4.0 – +2.0 (dpt) Eye sensor: Yes |
| Focus | Type: Contrast AF system DFD technology: Yes Focus mode: AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF AF mode: Face/Eye Detection / Tracking / 49-Area / Custom Multi / 1-Area / Pinpoint (Full area touch is available) (Scalable AF frame size and flexible AF position) AF detective range: EV -4 – 20 (ISO100 equivalent) Starlight AF: Yes AF assist lamp: Yes AF lock: Set the Fn button in custom menu to AF lock Post Focus / Focus Stacking: Yes / Yes Others: AF-ON, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Loop Movement Focus Frame, Lens Focus Resume |
| Exposure Control | Light metering system: 1728-zone multi-pattern sensing system Light metering mode: Multiple / Centre Weighted / Spot Metering range: EV 0 – 18 (F2.0 lens, ISO100 equivalent) Exposure mode: Program AE, Aperture Priority AE, Shutter Priority AE, Manual Exposure ISO sensitivity: (Standard output sensitivity) Still image: Auto / i.ISO / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step); Creative Video Mode: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 (Changeable to 1/3 EV step) Exposure compensation: 1/3 EV step, ±5EV (±3 EV for motion picture) AE lock: Set the Fn button in custom menu to AE lock |
| White Balance | White balance: AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Colour temperature setting 1, 2, 3, 4 White balance adjustment: Blue/Amber bias, Magenta/Green bias Color temperature setting: 2500-10000K in 100K |
| Shutter | Type: Electronically-control focal-plane shutter
Shutter speed Live View Composite: 1/2/1960 |
| Flash | Flash type: TTL Built-in-Flash, GN5.1 equivalent (ISO200 ・m) / GN3.6 equivalent (ISO100 ・m) (Reference), Built-in Pop-up Flash mode: Auto*, Auto/Red-eye Reduction*, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off*For iA, iA+ only. Synchronization speed: Less than 1/50 second Flash output adjustment: 1/3EV step ±2EV Flash synchronization: 1st. Curtain Sync., 2nd Curtain Sync. Wireless control: Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch |

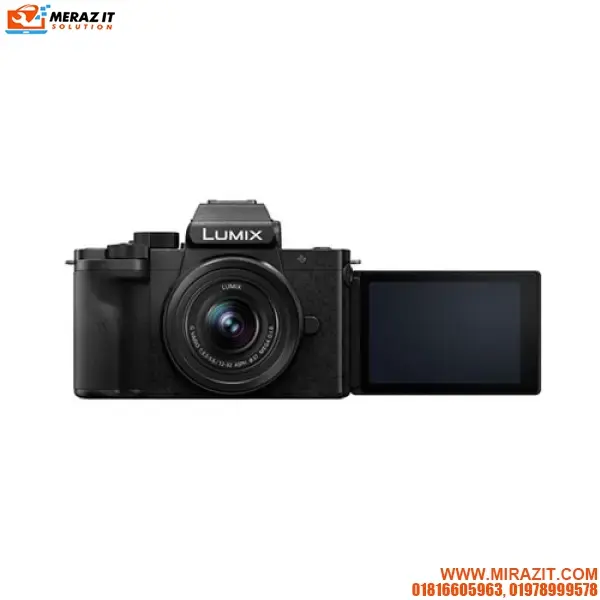

| Rear Monitor | Type: TFT LCD monitor with static touch control Monitor size: Free-angle, 3.0-inch (7.5cm), 3:2 aspect Pixels: Approx. 1,840k dots Field of view: Approx. 100% |
| Live View | Digital zoom: 2x Extra Tele Conversion: Still image: 1.4x (EX M), 2.0x (EX S) Motion picture: 2.7x (FHD), 4.0x (HD) Other functions: Level Gauge, Real-time Histogram, Guide Lines (3 patterns), Centre Marker, Highlight display (Still image / motion picture), Zebra Pattern (Still image / motion picture), Frame Maker, REC Frame Indicator, Live View Boost |
| Direction Detection Function | Yes |
| Function Button | REC: 4K PHOTO / Exposure Comp. / Wi-Fi / Q.MENU / Video Record / LVF/Monitor Switch / LVF/Monitor Disp. Style / AF/AE LOCK / AF-ON / Preview / One Push AE / Touch AE / Level Gauge / Focus Area Set / Zoom Control / Operation Lock / Focus Ring Lock / Dial Operation Switch / Photo Style / Filter Effect / Aspect Ratio / Picture Size / Quality / Metering Mode / Burst Rate / Self Timer / Live View Composite / Bracket / Focus Mode / Highlight Shadow / i. Dynamic / i. Resolution / Min. Shtr Speed / HDR / Shutter Type / Flash Mode / Flash Adjust. / Wireless Flash Setup / Ex. Tele Conv. / Digital Zoom / Stabiliser / E-Stabilisation (Video) / 4K Live Cropping / Snap Movie / Motion Pic. Set / S&Q Effect / Picture Mode in Rec. / Sound Rec Level Adj. / Sound Rec Level Disp. / Built-in Mic / Mic. Directivity Adjust / Silent Mode / Peaking / Histogram / Guide Line / Frame Maker / Zebra Pattern / Monochrome Live View / Constant Preview / Live View Boost / Rec Area / Step Zoom / Zoom Speed / Sensitivity / White Balance / AF Mode/MF / Drive Mode / Rec/Playback Switch / Off / Restore to Default PLAY: Wi-Fi / LVF/Monitor Switch / Rec/Playback Switch / Send Image (Smartphone) / 4K PHOTO Play / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / RAW Processing / 4K PHOTO Bulk Saving / Off / Restore to Default PHOTO STYLE: Standard / Vivid / Natural / Scenery / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D / Cinelike V / V-Log L / Custom FILTER: Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Colour / Sunshine* (*For photos only.) Direct print: PictBridge compatible |
| Creative Video Mode | Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 (Changeable to 1/3 EV step) |
| Playback | Wi-Fi / LVF/Monitor Switch / Rec/Playback Switch / Send Image (Smartphone) / 4K PHOTO Play / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / RAW Processing / 4K PHOTO Bulk Saving / Off / Restore to Default |
| Interface | USB: USB 2.0 Micro-B HDMI: microHDMI TypeD / VIERA Link Video: Auto / 4K/25p / 1080p / 1080i / 720p / 576p Audio: Stereo External microphone input: φ3.5mm Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately). Microphone: Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately). Speaker: Monaural |
| Power | Battery: DMW-BLG10E Li-ion Battery Pack (7.2V, 1025mAh, 7.4Wh) (Included), USB power charging Battery life (CIPA standard): Approx. 270 images (rear monitor), 250 images (LVF), 900 images (Power Save LVF mode*) with H-FS12032 / H-FS12060 *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec. Continuous recordable time (Motion picture): 4K/30p, 4K/25p: Approx. 80 min (rear monitor), 70 min (LVF) with H-FS12032 / H-FS12060 Actual recordable time (Motion picture): 4K/30p, 4K/25p: Approx. 40 min (rear monitor), 35 min (LVF) with H-FS12032 / H-FS12060 |
| Operating Environment | Operating temperature: 0℃ to 40℃ (32°F to 104°F) Operating humidity: 10%RH to 80％RH Standard accessories: DC-G100 Kit (12-32mm) Body Cap, Hot Shoe Cover, Battery Pack, AC Adaptor, USB Connection Cable, Shoulder Strap |
| Standard Accessories | DC-G100 Kit (12-32mm) Body Cap, Hot Shoe Cover, Battery Pack, AC Adaptor, USB Connection Cable, Shoulder Strap |
| Interchangeable Lens-1 | Lens Name: LUMIX G VARIO 12-32mm / F3.5-5.6 ASPH. / MEGA O.I.S. Lens Construction: 8 elements in 7 groups (3 aspherical lenses, 1 ED lens) Nano Surface Coating: NO Mount: Micro Four Thirds mount Optical Image Stabilizer: Yes (MEGA O.I.S.) Focal Length: f=12-32mm (35mm camera equivalent 24-64mm) Aperture Type: 7 diaphragm blades / Circular aperture diaphragm Maximum Aperture: F3.5(Wide) – F5.6(Tele) Minimum Aperture: F22 Closest Focusing Distance: 0.20m/0.66ft (at focal lenghts 12-20mm) / 0.30m/0.98ft (at focal lenghts 21-32mm) Maximum magnification: Approx. 0.13x / 0.26x (35mm camera equivalent) Diagonal Angle of View: 84°(Wide) to 37°(TELE) Filter Size: 37mm / 1.5in Max. Diameter: φ55.5mm / 2.2in Overall Length: Approx. 24mm / 0.94in (from the tip of the lens to the base side of the lens mount) Weight Approx.: 70g / 2.47oz (excluding lens cap, lens rear cap ) Standard Accessories: Lens cap, Lens rear cap |
| Warranty | 1 Year Service warranty |
