Description

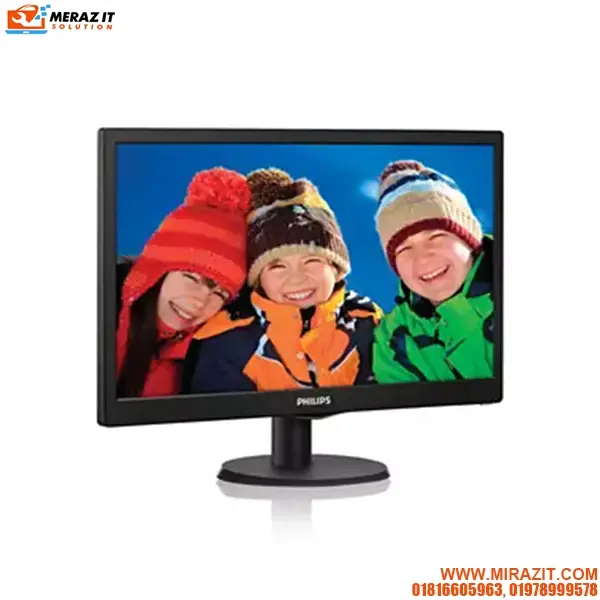

Model | 193V5LSB2/94 |
Display Size | 18.5 Inch |
Picture/Display | • panel type: TFT • Backlight type: W-LED system • Panel Size: 18.5 inch / 47 cm • Effective viewing area: 409.8 (H) x 230.4 (V) • Aspect ratio: 16:9 • Optimum resolution: 1366 x 768 @60 Hz • Response time (typical): 5 ms • Brightness: 200 cd/m² • Contrast ratio (typical): 700:1 • Pixel pitch: 0.30x 0.30 mm • Viewing angle: 90º (H) / 65º (V), @ C/R> 10 • Display colors: 16.7 M • Scanning Frequency: 30 -83 kHz (H) / 56 -76 Hz (V) •sRGB |
Display Resolution | Resolution: 1366 x 768 |
Display Type | panel type: TFT |
Aspect Ratio | 16:9 |
Brightness | 200 cd/m² |
Contrast Ratio | (typical) : 700:1 |
Color Support | Display colors: 16.7 M |
VGA | VGA (Analog ) |
Response Time | (typical): 5 ms |
Tilt | -3/10 degree |
Viewing Angle | 90º (H) / 65º (V), @ C/R> 10 |
Weight | • Product with stand (kg): 2.15kg • Product without stand (kg): 1.94kg • Product with packaging (kg): 3.02kg |
Connectivity | • Signal Input: VGA (Analog ) • Sync Input: Separate Sync, Sync on Green |
Power | • On mode: 13.74 W (typ.) • Standby mode: 0.5 W (typ.) • Off mode: 0.5 W (typ.) • Power LED indicator: Operation – White, Standby mode- White (blinking) • Power supply: Built-in, 100-240VAC, 50-60Hz |
Sustainability | • Environmental and energy: RoHS, Lead-free, Mercury Free • Recyclable packaging material: 100% |
Dimensions | • Product with stand (mm): 437 x 338 x 170 mm • Product without stand (mm): 437 x 273 x 48 mm • Packaging in mm (WxHxD): 495 x 361 x 111mm |
Stand | Tilt-3/10 degree |
Cabinet | • Color: Black • Finish: Hairline / Texture |
Wall Mount | Yes, Wall Mountable |
Others | • Assembled in China |
Warranty | 3 years warranty |
