Description

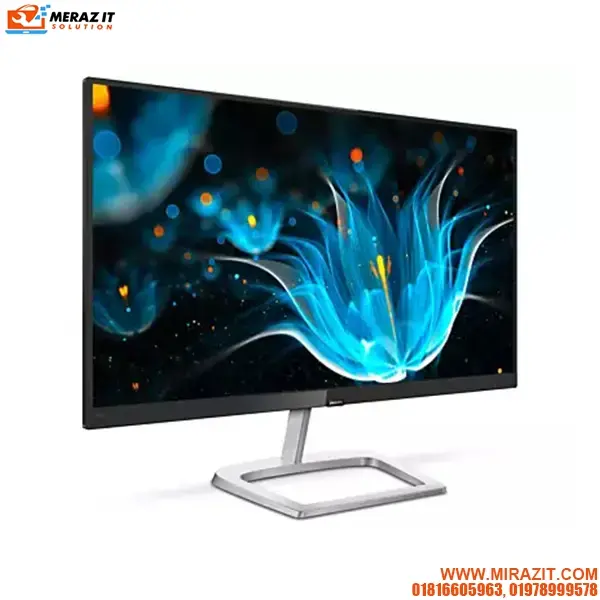

| Model | 246E9QJAB |
| Convenience | •Built-in Speakers: 3 W x 2 •User convenience: Power |
| Display Size | 23.8 inch |
| Picture/Display | •LCD panel type: IPS technology •Backlight type: W-LED system •Panel Size: 23.8 inch / 60.5 cm •Display Screen Coating: Anti-Glare, 3H, Haze 25% •Effective viewing area: 527.04 (H) x 296.46 (V) •Aspect ratio: 16:9 •Maximum resolution: 1920 x 1080 @ 75 Hz* •Pixel Density: 93 PPI •Response time (typical): 4 ms (Gray to Gray)* •Brightness: 250 cd/m² •Contrast ratio (typical): 1000:1 •SmartContrast: 20,000,000:1 •Pixel pitch: 0.275 x 0.275 mm •Viewing angle: 178º (H) / 178º (V), @ C/R> 10 •Flicker-free •Picture enhancement: SmartImage game •Color gamut (typical): NTSC 108%*, sRGB 129%* •Display colors: 16.7 M •Scanning Frequency: 30 – 83 kHz (H) / 50 – 76 Hz (V) •LowBlue Mode •FreeSync •sRGB |
| Display Resolution | 1920 x 1080 |
| Display Type | Panel Type: IPS |
| Aspect Ratio | 16:9 |
| Brightness | 250 cd/m2 |
| Contrast Ratio | (typical): 1000:1 |
| Color Support | Display colors: 16.7 M |
| HDMI | HDMI (digital, HDCP) |
| VGA | VGA (Analog ) |
| Response Time | (typical): 4 ms |
| Tilt | -5/20 degree |
| Viewing Angle | 178º (H) / 178º (V), @ C/R> 10 |
| Weight | •Product with stand (kg): 3.01 kg •Product without stand (kg): 2.45 kg •Product with packaging (kg): 4.51 kg |

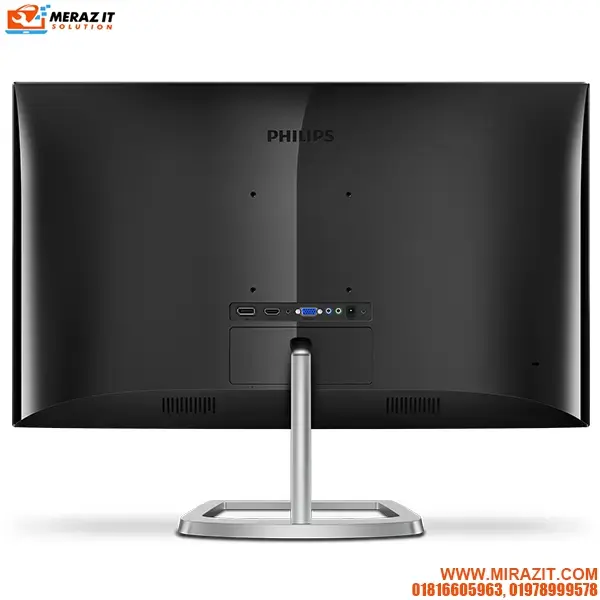

| Connectivity | •Signal Input: VGA (Analog ), HDMI (digital, HDCP), DisplayPort •Sync Input: Separate Sync, Sync on Green •Audio (In/Out): PC audio-in, Headphone out |
| Power | •On mode: 12.25 W (typ.) (EnergyStar 7.0 test method) •Standby mode: <0.5 W (typ.) •Off mode: <0.3 W (typ.) •Power LED indicator: Operation – White, Standby mode- White (blinking) •Power supply: External, 100-240VAC, 50-60Hz |
| Sustainability | •Environmental and energy: EnergyStar 7.0, RoHS, Lead-free, Mercury Free, WEEE •Recyclable packaging material: 100 % |
| Dimensions | •Product with stand (mm): 540 x 416 x 190 mm •Product without stand (mm): 540 x 326 x 39 mm •Packaging in mm (WxHxD): 586 x 477 x 141 mm |
| Stand | • Tilt: -5/20 degree |
| Cabinet | •Color: Black / Silver •Finish: Glossy |
| Wall Mount | Yes, Wall Mountable |
| Others | • Assembled in China |
| Warranty | 3 years warranty |
