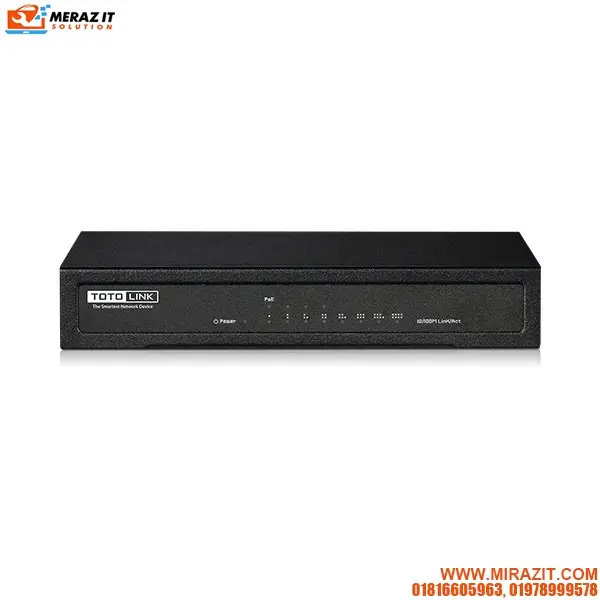

TOTOLINK SW804P 8-Port Gigabit 10/100Mbps PoE Switch

৳ 3,500

Complies with IEEE 802.3af, IEEE 802.3, IEEE 802.3u, IEEE 802.3x.
4*10/100Mbps PoE Ports, 4*10/100Mbps auto-negotiation RJ45 Ports.
Up to 15.4Watt for each PoE port.
LED indicators for monitoring power, PoE, overload status, link and activity.
Metal case, desktop or wall-mounting design.

অর্ডার করার পূর্বে অবশ্যই প্রোডাক্ট এর স্টক জেনে নিন।

01816-605963 01816-605963
SKU: albr9267 Category:

Description

Standards IEEE 802.3af,
IEEE 802.3,
IEEE 802.3u,
IEEE 802.3x
Interface 4*10/100Mbps PoE Ports,
4*10/100Mbps auto-negotiation RJ-45 Ports
Dimensions(L x W x H) – 158.4mm x 106.5mm x 27mm
LED 1*Power,
4*PoE,
1*Overload,
8* Link/Act
MAC Address Learning Auto-Learning, Auto-Aging
Port Lightning Protection 6KV
MAC Address Table 1K
Network Media 10BASE-T: UTP Cat 3 or above cable
100BASE-TX: UTP Cat 5, 5e or above cable
Backup Bandwidth 1.6Gbps
Transmission Method Store-and-forward
Package Contents SW804P Desktop Switch *1
Power Adapter
Quick Installation Guide *1
Environment Operating Temperature: 0℃~50℃ (32℉~122℉)
Storage Temperature: -40~70℃ (-40℉~158℉)
Operating Humidity: 5%~95% non-condensing
Storage Humidity: 5%~95% non-condensing
PoE Supply Management Port 1 to Port 4 support IEEE802.3at/af PoE standard
PoE Through Pin 1 2 4 5 +,3 6 7 8 –
Power Input AC:100-240V~ 50/60Hz
DC : 48V /1.25A(Power Adapter )
Power Consumption In full configuration:<63W
PoE Max Power Supply:58W
